8 10/100/1000T X-coded EN50155 L2+ (8 PoE at/af) Managed Ethernet Switch w/ Enhanced G.8032 Ring; WVI input

  • EN50155/61373/45545-2 verification; 16.8~137.5V input
  • Built-in IEC 61375-3-4 ECN (Ethernet Consist Network) to work with IEC61375-2-5 ETBN
  • PoE model: IEEE802.3at/af up to 30W per port; PoE budget up to 80W
  • PoE model: PoE management incl. detection and scheduling
  • Galvanic isolation between input, PoE (PoE model) and output as well as case
  • Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP; support MRP Ring
  • IP54 Aluminum housing for best heat dissipation and preventing moist ingress
  • Environmental Monitoring for temp., input voltage, current and total PoE load (PoE model)
  • Miss-wiring avoidance & node failure protection
  • Inrush current protection
  • User friendly UI, including auto topology drawing; Complete CLI
  • Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ
  • Protocol based VLAN; IPv4 Subnet based VLAN
  • N-key configurator** for upgrading, auto back up /editable restoration without computer


EN50155 EN45545-2  Fire & Smoke ITU G.8032 Ring Environmental Monitoring PoE 802.3at/af 30W
FCC CE WEEE RoHS2


Datasheet   Hardware Manual
For latest firmware and web UI user manual, please send request to support@lantechcom.tw

OVERVIEW

Lantech T(P)GS-5008T (IP54) is a high performance L2+ All Gigabit Ethernet switch with 8 10/100/1000T (w/8 PoE at/af ports up to 30W@ at M12 X-coded) providing L2 wire speed and advanced security function for network aggregation deployment. It houses in an IP54 aluminum compact enclosure that is waterproof and will prevent moisture ingress due to temperature fluctuations. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN mode with easy configuration. The comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+**, SSH v2/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ are supported and also required in large network. It also supports10K Jumbo frame.


Dual WVI (16.8V~137.5VDC) input, high PoE budget (PoE model)
WVI model w/PoE isolation accepts 16.8~137.5VDC dual input and can feed 54V output with max 80W PoE budget. A voltage which can be minimal 0,5 Un nominal voltage (when Vin≧36V) and/or a voltage which can be maximal 1,5 Un nominal voltage for more than 1000 consecutive ms (one second).


PoE +, Advanced PoE management (PoE model)
Lantech TPGS-5008T (IP54) supports IEEE802.3at/af standard which can feed power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, wireless AP etc. The advanced PoE management includes PoE detection and scheduling besides the regular PoE per port status. PoE detection can detect if the connected PD is hang up then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Per port PoE status can remotely On/Off the power and display information of voltage, current, watt and PoE temperature.


Enhanced G.8032 ring, 16 MSTI MSTP; MRP Ring
Lantech T(P)GS-5008T (IP54) features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring, multiple-VLAN ring and auto-ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows RSTP over VLAN for redundant links with 16 MSTI. MRP (Media Redundancy Protocol) can be supported for industrial automation networks.


Miss-wiring avoidance, Loop protection, Node failure protection
The T(P)GS-5008T (IP54) also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech T(P)GS-5008T (IP54) is able to alert with the LED indicator and disable ring automatically. Node failure protection ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.


QoS by VLAN for legacy device
QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.


QinQ, QoS and GVRP supported
It supports the QinQ, QoS, GVRP for large VLAN segmentation.


802.1X security by MAC address
MAC-based port authentication is an alternative approach to 802.1x for authenticating hosts connected to a port. By authenticating based on the host's source MAC address, the host is not required to run a user for the 802.1x protocol. The RADIUS server that performs the authentication will inform the switch if this MAC can be registered in the MAC address table of switch.


IGMPv3,GMRP, router port, MLD Snooping, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port, MLD snooping and static multicast forwarding binding by ports for video surveillance application.


Built-in IEC 61375-3-4 ECN (Ethernet Consist Network) to work with IEC61375-2-5 ETBN
Lantech OS1 Ethernet switches comply with IEC 61375-3-4 (ECN) standard. The support of Ethernet Consist Network allows interconnection between end devices located in single consist of train and interoperability with IEC61375-2-5 (ETBN).


DHCP option 82 & Port based, Mac based DHCP, Option66, DHCP Snooping, IPv6 DHCP server
DHCP server can assign dedicated IP address by MAC or by port (Port based for single switch) , it also can assign IP address by port for multiple switches with single DHCP option82 server. DHCP Snooping is supported. For the ending device which need to download file from TFTP server, DHCP Option66 server can offer IP address of TFTP server to DHCP client. Basic IPv6 DHCP service can be supported.


User friendly GUI, Auto topology drawing
The user friendly UI, innovative auto topology drawing and topology demo makes T(P)GS-5008T (IP54) much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line.


Optional N key auto backup, exported text file
The configuration file of Lantech T(P)GS-5008T (IP54) can be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The optional N-key configurator offers firmware upgrade, auto backup/ editable configuration restore without computer by adjusting the DIP switch. The built-in watchdog design can automatically reboot the switch when CPU is found dead.


Event log & message; 2DI + 2DO
In case of event, the T(P)GS-5008T (IP54) is able to send an email** to pre-defined addresses as well as SNMP Traps out immediately. It provides 4DI and 3DO when disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.


Environmental monitoring for inside switch info
The built-in environmental monitoring can detect switch overall temperature, real input voltage, current and total PoE load (PoE model) where can send the SNMP traps and email** when abnormal.


High ESD protection, Inrush current protection
IPGS-5008T (IP54) provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. The inrush current on initial power up can be limited lower than 10 x nominal current and for less than 1ms.


EN50155, EN45545-2, EN50121-3-2, EN61373 verification
The T(P)GS-5008T (IP54) passed serious tests under extensive Industrial EMI and Safety standards. With EN45545-2 Fire & Smoke, and EN50155 verification, the T(P)GS-5008T (IP54) is best for railway in train/track side, vehicle and mining applications. For more usage flexibilities, T(P)GS-5008T (IP54) supports wide operating temperature from -40°C to 75°C.


*Future release
**Optional

FEATURES

  • 8 10/100/1000T X-coded EN50155 IP54 M12 Managed Ethernet Switch (w/8x 802.3at/af PoE ports) (Total 8 Ports Gigabit Switch)/ 30W@each port
  • EN45545-2 Fire & Smoke,EN50155 and EN61373 shock/vibration verification
  • PoE WVI model w/ PoE galvanic isolation accepts dual 16.8~137.5VDC power input and feed 54V for PoE at/af at max 80W budget
  • WVI model accepts dual 16.8~137.5VDC power input
  • Back-plane (Switching Fabric): 16Gbps
  • 16K MAC address table
  • 10KB Jumbo frame
  • User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
  • Enhanced G.8032 Ring protection in 20ms < 256 switches
    • Support various ring/chain topologies, including train ring, enhanced ring, basic ring, auto ring & multiple VLAN ring (with 3rd party G.8032 switch)
    • Auto ring configuration(auto mode) for single ring
    • Multi-VLAN mode
  • IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy with 16 MSTI
  • Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base and Type of Service Priority
  • 4K 802.1Q VLAN, Port based VLAN, GVRP, QinQ, QoS
  • QoS by VLAN tag to prioritize all devices in network
  • Supports IEEE 802.1ab LLDP, Cisco CDP; LLDP info can be viewed via Web/ Console
  • DHCP server / client / DHCP Option 82 relay / DHCP Option 82 server; Port based DHCP server; DHCP Snooping; DHCP Option 66; basic IPv6 DHCP server
  • Mac based DHCP server to assign IP address that includes dumb switches in DHCP network
  • MLD Snooping for IPv6 Multicast stream
  • Bandwidth Control
    • Ingress packet filter and egress rate limit
    • Broadcast/multicast packet filter control
  • Miss-wiring avoidance
    • LED indicator
  • Node failure protection
    • Ensure the switches in a ring to survive after power breakout is back
    • The status can be shown in NMS when each switch is back
  • Inrush current protection
  • TFTP/HTTP firmware upgrade
  • System Event Log, SMTP** Email alert and SNMP Trap for alarm support; 32 RMON counters
  • Security
    • SSL/SSH v2/INGRESS/EGRESS ACL L2/L3
    • MAC address table: MAC address entries/Filter/MAC-Port binding
    • IP Security: IP address security management to prevent unauthorized intruder
    • TACACS+**
    • Login Security: IEEE802.1X/RADIUS
    • HTTPS for secure access to the web interface
  • Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application
  • IGMP router port to assign query in ring for reversed multicast video flow
  • IGMPv1,v2,v3 with Query mode for multimedia
  • Watchdog design to auto reboot switch CPU is found dead
  • Diagnostic including Ping / ARP table / DDM information
  • Built-in environmental monitoring for system input voltage, current, ambient temperature & total PoE load (PoE model)
  • Supports 2 DI + 2 DO (Digital Input/Digital Output)
  • IP54 aluminum housing with wall mount design
  • Configuration backup and restoration
    • Supports editable configuration file for system quick installation
  • Wide operation temperature: -40C~75C/-40F~167F
  • Built-in IEC 61375-3-4 ECN (Ethernet Consist Network) to work with IEC61375-2-5 ETBN
  • EN45545-2 Fire & Smoke, EN50155 and EN61373 shock/vibration verification
  • Galvanic isolation from power input/Ethernet ports to system 1.5KV
*Future release
**Optional

SPECIFICATIONS

Hardware Specifications

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 16Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100/1000T: 8 x ports M12 8-pole X-coded with Auto MDI/MDI-X function
RS-232/Reset connector: 1 x M12 5-pole A-coded
DI/DO: 1 x M12 5-pole A-coded
Power Input connector :
1x M12 4-pole A-coded Male

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red), RM(Green)
Ethernet port: Link/Active(Green)
PoE : Link/Active(Green, PoE model)

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 80 VDC, 50mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

16.8~137.5VDC

Power Consumption

Without PoE: Max. 12W
With PoE: Max. 13.7W

PoE Budget (PoE model)

Input Range

Power Input

Maximal PoE Budget

16.8~27VDC

Dual Power Input

80W

28~137.5VDC

Single Power Input

80W

PoE pin assignment (PoE model)

M12: port # 1~ # 8 support IEEE 802.3at/af End-point. Per port provides up to 30W

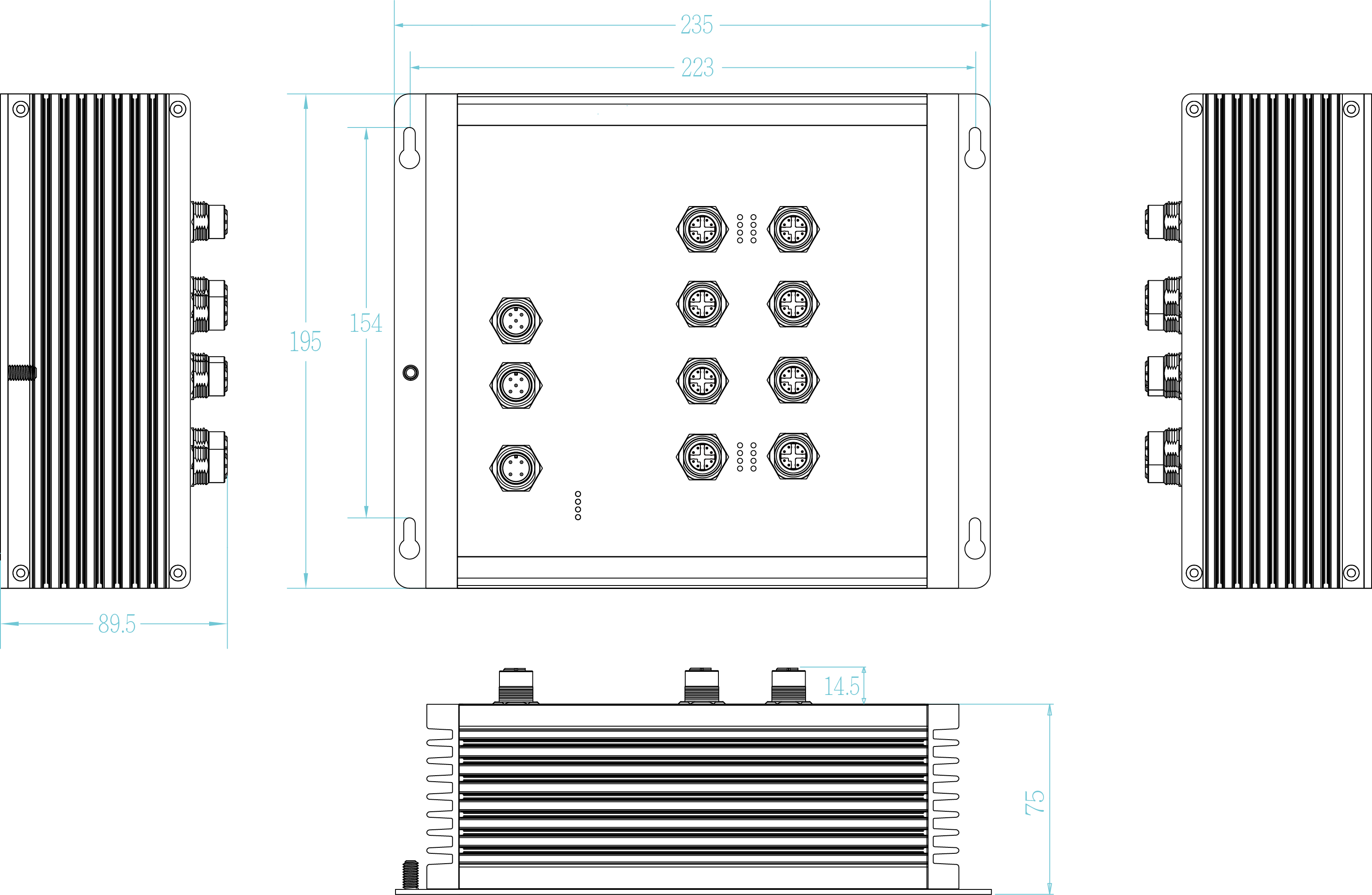

Dimensions

235mm(W)x195mm(H)x89.5mm(D)

Weight

980gs (IP54)

Installation

Wall Mount Design

EMI & EMS

FCC Part 15 Class A ,CE EN55022,
CE EN55024 , CE EN61000-4-11
CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3

Stability Testing

EN61373 (Shock and Vibration)

Verifications & report

EN50155//EN50121-3-2/EN50121-4 verification
EN 45545-1, EN 45545-2 Fire & Smoke verification

MTBF

622,324 hrs (standards: IEC 62380)

Warranty

5 years

Software Specifications

Management

SNMP v1 v2c, v3/ Web/Telnet/CLI

SNMP MIB

RFC 1213 MIBII
RFC 1158 MIBII
RFC 1157 SNMP MIB,
RFC 1493 Bridge MIB*
RFC 1573 IF MIB
Partial RFC 1757 RMON,
RFC 2674 Q-Bridge MIB*
LLDP MIB
Private MIB

ITU G.8032

Support ITU G.8032 v2/2012 for Ring protection in less than 20ms for self-heal recovery (single ring enhanced mode)
Support various ring/chain topologies
Includes train ring, auto ring, basic single ring, enhanced ring, multiple-VLAN ring
Enhanced G.8032 ring configuration with ease
Cover multicast & data packets protection

PoE Management (PoE model)

  1. PoE Detection to check if PD hangs then restart the PD
  2. PoE Scheduling to On/OFF PD upon routine time table
  3. On/ Off, voltage, current, watts, temperature

User friendly UI

  1. Auto topology drawing
  2. Topology demo
  3. Complete CLI for professional setting

Port Trunk with LACP

LACP Port Trunk: 8 Trunk groups

LLDP

Supports LLDP to allow switch to advise its identification and capability on the LAN

CDP

Cisco Discovery Protocol for topology mapping

Environmental Monitoring

System status for input voltage, current, PoE load (PoE model) and ambient temperature to be shown in GUI and sent alerting if any abnormal status

VLAN

Port Based VLAN
IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096)
GVRP, QinQ, QoS, Protocol based VLAN; IPv4 Subnet based VLAN

Spanning Tree

Supports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree (16 MSTI)

Quality of Service

The quality of service determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points - DSCP

Class of Service

Support IEEE802.1p class of service, per port provides 8 priority queues

QoS by VLAN

Tagged QoS by VLAN for all devices in the network

MLD Snooping

Support IPv6 Multicast stream

IP Security

Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.

Login Security

Supports IEEE802.1X Authentication/RADIUS

Port Mirror

Support 3 mirroring types: “RX, TX and Both packet”

Network Security

Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
802.1X access control for port based and MAC based authentication/MAC-Port binding
Ingress/Egress ACL L2/L3
SSL/ SSH v2 for Management
HTTPS for secure access to the web interface
TACACS+** for Authentication

IGMP

Support IGMP snooping v1,v2,v3 ; 1024 multicast groups; IGMP router port ; IGMP query; GMRP

Static MAC-Port bridge

Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application

Bandwidth Control

Support ingress packet filter and egress packet limit.
The egress rate control supports all of packet type.
Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet.
The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit.

Flow Control

Supports Flow Control for Full-duplex and Back Pressure for Half-duplex

System Log

Supports System log record and remote system log server

SMTP**

Supports SMTP** Server and 8 e-mail accounts for receiving event alert

Relay Alarm

Provides one relay output for port breakdown, power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

Protection

  1. Miss-wiring avoidance
  2. Node failure protection
  3. Loop protection

SNMP Trap

Up to 10 trap stations; trap types including:

  1. Device cold start
  2. Authorization failure
  3. Port link up/link down
  4. DI/DO open/close
  5. Typology change (ITU ring)
  6. Power failure
  7. Environmental abnormal

DHCP

Provide DHCP Client/ DHCP Server/DHCP Option 82/Port based DHCP; DHCP Snooping; DHCP Option 66; basic IPv6 DHCP server

Mac based DHCP Server

Assign IP address by Mac that can include dumb switch in DHCP network

DNS

Provide DNS client feature and support Primary and Secondary DNS server.

Diagnostic

Support Ping, ARP table and DDM information

SNTP

Supports SNTP to synchronize system clock in Internet

Firmware Update

Supports TFTP firmware update, TFTP backup and restore; HTTP firmware upgrade

N-Key Configurator**

RJ45 dongle for firmware upgrade, auto / editable configuration backup/restoration

Configuration
upload and download

Supports editable configuration file for system quick installation; Support factory reset button to restore all settings back to factory default

*Future release
**Optional

DIMENSION

ORDER INFORMATION

All model packages include M12 caps and wall mount bracket. All standard models are non-coating, optional coating models are available with –C model name.

P/N Model name Description
8361-4249 TPGS-5008T-54-WVI 8 10/100/1000T X-coded EN50155 M12 IP54 L2+ PoE Managed Gigabit Ethernet Switch; 16.8V~137.5VDC dual input w/ PoE galvanic isolation; PoE max 80W budget ; -40°C to 75°C
8361-42491 TPGS-5008T-54-WVI-C 8 10/100/1000T X-coded EN50155 M12 IP54 L2+ PoE Managed Gigabit Ethernet Switch; 16.8V~137.5VDC dual input w/ PoE galvanic isolation; PoE max 80W budget ; -40°C to 75°C; w/conformal coating
8361-4253 TGS-5008T-54-WVI 8 10/100/1000T X-coded EN50155 M12 IP54 L2+ Managed Gigabit Ethernet Switch; 16.8V~137.5VDC dual input w/ PoE galvanic isolation; -40°C to 75°C
8361-42531 TGS-5008T-54-WVI-C 8 10/100/1000T X-coded EN50155 M12 IP54 L2+ Managed Gigabit Ethernet Switch; 16.8V~137.5VDC dual input w/ PoE galvanic isolation; -40°C to 75°C; w/conformal coating
8850-100 N-key Configurator RJ45 connector dongle for firmware upgrade, auto/editable configuration backup and restoration; -20°C to 60°


OPTIONAL ACCESSORIES - Connector

Model name Description
ECONM12-04A(F)-C-180 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply
ECONM12-05A(M)-C-180 5 pin M12 (Male) A-coded 180 degree crimp type connector for DI/DO
ECONM12-08X(M)-SPEEDCON 8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON


OPTIONAL ACCESSORIES - Cable

Model name Description
ECONM12-4P(F)1.5M CABLE 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm
ECABM12X83MSTP 8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm
