OVERVIEW
Lantech T(P)GS-0208TD is an unmanaged Ethernet switch equipped with 10 10/100/1000T ports and M12 connectors. Designed with IP67/IP54 rated protection, it fulfills the high reliability requirements of industrial rolling stock applications. Certified with EN50155, ITxPT*, and E-marking*, it ensures compliance with world-class standards.
Redundant dual 24VI/24TVI input with inrush current prevention and EN50155 verification with high ESD and polarity reverse protection；PoE model supports up to 8 PoE at/af ports and PoE galvanic isolation
Complying with IEEE 802.3af/at standards, the PoE model to supply up to 30W per port with a total PoE budget of 80W for various IP PD devices. PoE galvanic isolation up to 1.5KVDC ensures insulation between the power input and PoE Ethernet ports, preventing cabling or grounding incidents from damaging the switch.
Sleep Mode & efficient PoE timer under Ignition-Off State
Compliant with ITxPT standards, the -IGN model features a 60-minute standby mode after ignition-off, maintaining network operation before entering sleep mode(0.048W)—preventing unnecessary reboots when power is restored.
The PoE ignition model also supports a configurable PoE timer, with a default delay of 10 minutes after ignition-off.
E-marking certificate*; ISO 16750-2 P5A compliant
T(P)GS-0208TD features IP54 enclosure with M12 connectors for dust/water protection, compliant with EMI, safety, free fall, shock, vibration tests, and ISO 16750-2 P5A to resist motor pulse voltages, effectively minimizing the impact of high-frequency pulse voltages commonly generated by motor applications.
*Future release **Optional
SPECIFICATIONS
Hardware Specifications
IEEE Standard |
IEEE802.3 10BASE-T Ethernet |
Transfer Rate |
14,880pps for Ethernet port |
Mac Address |
16K MAC address table |
Connector |
10/100/1000T: 10 x ports M12 8-pole X-coded connector with Auto MDI/MDI-X function
|
LED |
Per unit: Power 1 (Green), Power 2 (Green), |
PoE pin assignment (PoE model) |
M12 port # 1~ # 8 support IEEE 802.3at/af End-point. Per port provides up to 30W
PoE pin assignment: |
Power Supply |
Dual input |
Power Consumption |
TBC |
Power Budget |
Total 80W @ 24VDC and above |
Operating Humidity |
5% to 95% (Non-condensing) |
Operating Temperature |
-40°C ~ 75°C (-40°F ~ 167°F) |
Storage Temperature |
-40°C ~ 85°C (-40°F ~ 185°F) |
Case Dimension |
Aluminum case, IP67/IP54 rated |
Weight |
850g |
Installation |
Wall Mount Design |
EMC |
FCC Part 15, Subpart B ICES-003 Issue 7, |
Verification |
EN 50155: 2021 |
Vehicle Certificate |
E24 marking* (UN ECE R10), R118 |
MTBF |
TBC |
*Future release **Optional
DIMENSION

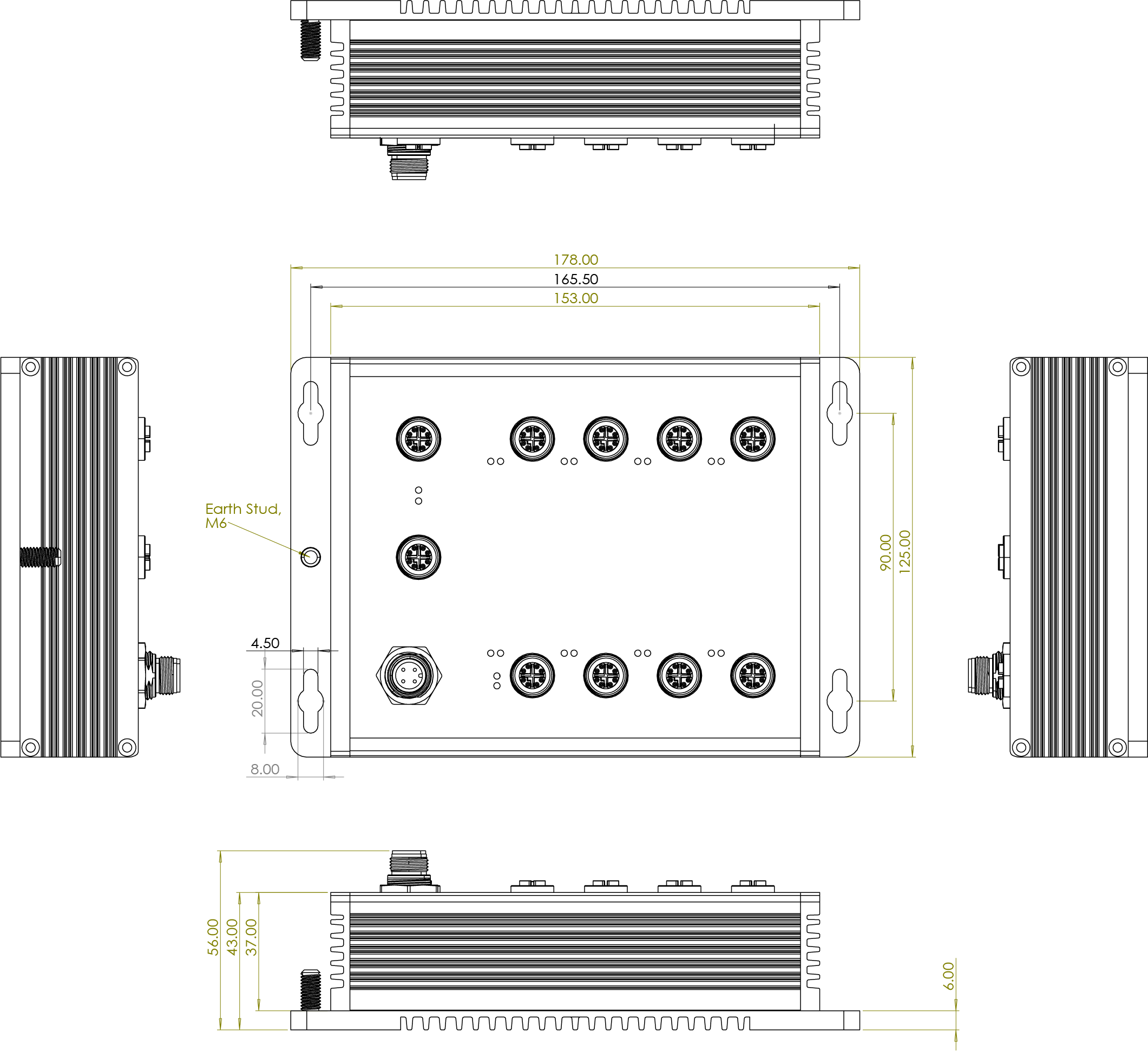

PoE models

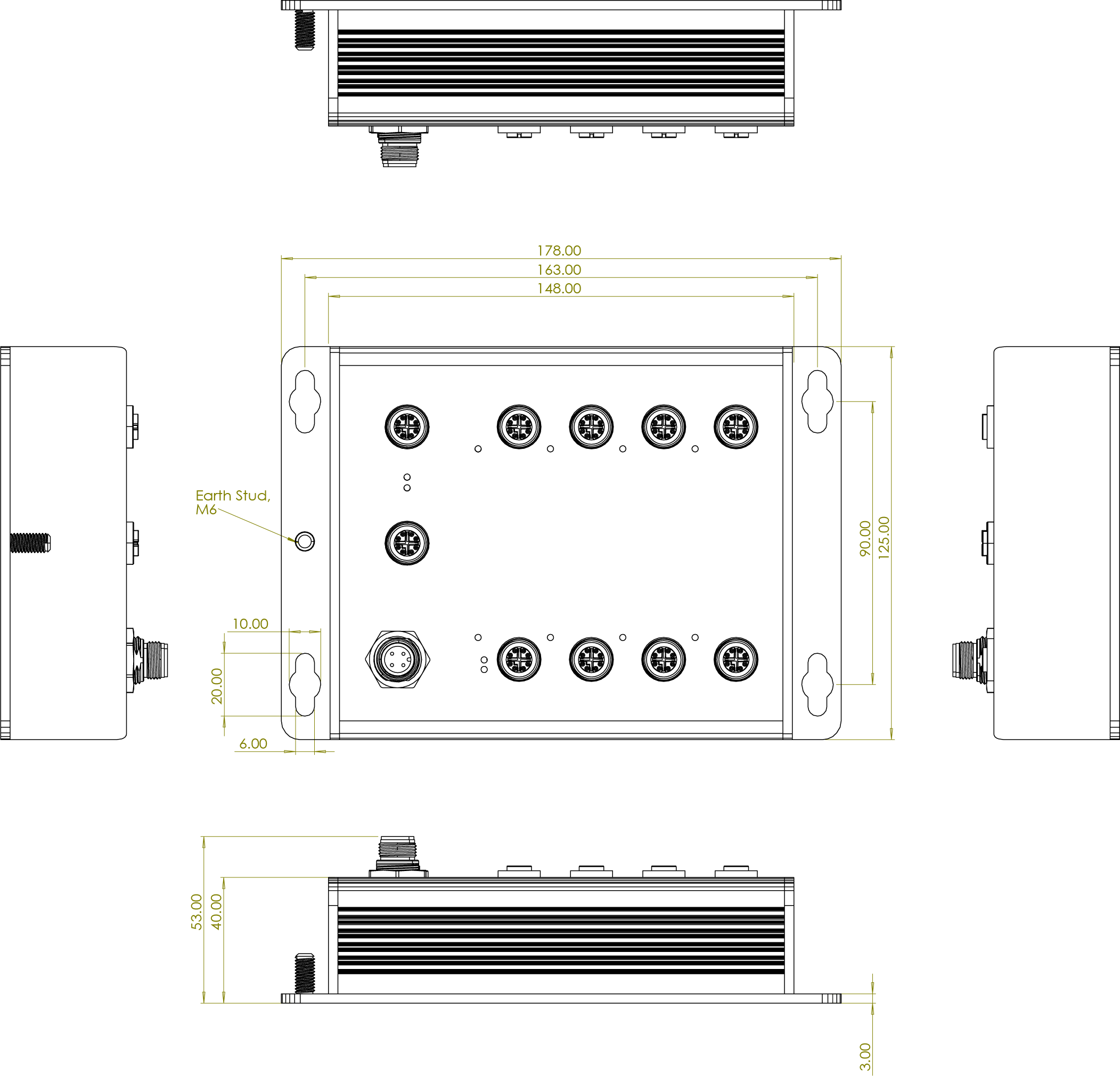

Non-PoE models (IP67)

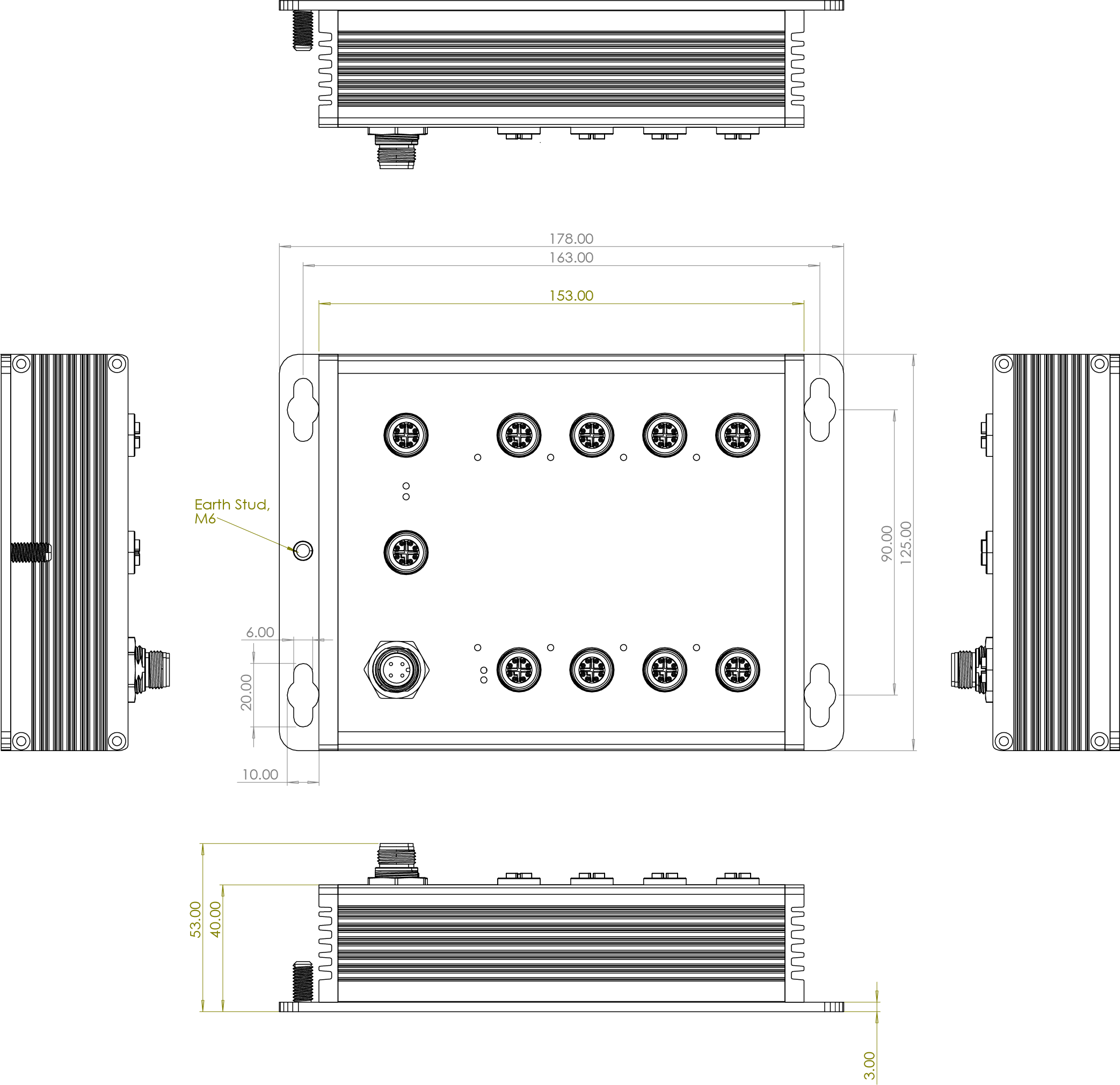

Non-PoE models (IP54)
ORDERING INFORMATION
All model packages include M12 caps and wall mount brackets. All standard models are non-coating, optional coating models are available with –C model name; for push-pull inner-lock connector model add -PP
| P/N | Model name | Description |
|---|---|---|
| 8351-1772 | TPGS-0208TD-8-54-24VI-IGN-E | 8 10/100/1000T w/8 PoE at/af M12 connectors EN50155 Unmanaged Ethernet Switch; w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 75°C; IP54 rated w/ignition |
| 8351-1773 | TPGS-0208TD-8-54-24TVI-E | 10 10/100/1000T w/8 PoE at/af M12 connectors EN50155 Unmanaged Ethernet Switch; w/PoE & Ethernet galvanic isolation; 16.8~56VDC dual input; -40°C to 75°C; IP54 rated |
| 8351-1774 | TPGS-0208TD-8-54-24VI-E | 8 10/100/1000T w/8 PoE at/af M12 connectors EN50155 Unmanaged Ethernet Switch; w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 75°C; IP54 rated |
| 8351-177 | TGS-0208TD-54-24VI-IGN-E | 10 10/100/1000T M12 connectors EN50155 Unmanaged Ethernet Switch; w/Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 75°C; IP54 rated w/ignition |
| 8351-1771 | TGS-0208TD-54-24TVI-E | 10 10/100/1000T M12 connectors EN50155 Unmanaged Ethernet Switch; w/Ethernet galvanic isolation; 16.8~56VDC dual input; -40°C to 75°C; IP54 rated |
| 8351-1775 | TGS-0208TD-54-24VI-E | 10 10/100/1000T M12 connectors EN50155 Unmanaged Ethernet Switch; w/Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 75°C; IP54 rated |
OPTIONAL ACCESSORIES - Connector
| Model name | Description |
|---|---|
| ECON120005PF | 5 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
| ECONM12-04A(F)-C-180 | 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
| ECONM12-08X(M)-SPEEDCON | 8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON |
OPTIONAL ACCESSORIES - Cable
| Model name | Description |
|---|---|
| ECONM12-5P(F)70CM CABLE | 5 pin M12 (Female) A-coded 90 degree cable for power supply, 70cm |
| ECONM12-4P(F)1.5M CABLE | 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm |
| ECABM12X83MSTP | 8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm |
| ECONM12-05A(F) to MCP 6P-20CM CABLE | 5 pin M12 (Female) A-coded 180 degree to 6 pin MCP power cable, 20cm (For ignition models) |
