OVERVIEW
Lantech T(P)ES-0216T is an unmanaged Ethernet switch featuring 16 10/100 Base TX ports and 2 Gigabit copper ports with M12 connectors. Designed with an IP54 rated enclosure, it provides reliable protection against dust and water, meeting the stringent reliability requirements of industrial rolling stock applications.
Redundant dual 24VI/24TVI input with max PoE budget; inrush current prevention and polarity reverse protection
T(P)ES-0216T supports dual power inputs with voltage ranges of 9–36VDC for the 24VI model and 16.8–56VDC for the 24TVI model. Featuring galvanic isolation between input power, PoE, and all Ethernet ports, the PoE variant delivers up to 120W from internal power. Its redundant power input design includes inrush current prevention and polarity reversal protection to ensure stable and reliable operation.
Sleep Mode & efficient PoE timer under Ignition-Off State
Compliant with ITxPT standards, the -IGN model features a 60-minute standby mode after ignition-off, maintaining network operation before entering sleep mode(0.048W)—preventing unnecessary reboots when power is restored.
The PoE ignition model also supports a configurable PoE timer, with a default delay of 10 minutes after ignition-off.
E-marking* certificate, ITxPT*; ISO 7637-2 compliant and extended working temperature; ISO 16750-2 P5A compliant
T(P)ES-0216T has passed rigorous industrial EMI, safety, and mechanical tests, including free-fall, shock, and vibration, ensuring reliable operation in harsh environments. The switch complies with ITxPT* public transport standards and ISO 7637-2, providing protection against high-voltage surges commonly encountered during vehicle crank starts.
T(P)ES-0216T supports an extended operating temperature range of -40°C to 75°C (-IGN-E; -24TVI model). E-marking* certification makes it ideal for buses, carriages, and other vehicle applications, as well as industrial sites with 12V or 24V power where IP surveillance or VoIP connectivity is required. It also meets ISO 16750-2 P5A to resist motor pulse voltages, effectively minimizing the impact of high-frequency pulse voltages commonly generated by motor applications.
*Future Release
**Optional
SPECIFICATIONS
Hardware Specifications
IEEE Standard |
IEEE802.3 10BASE-T Ethernet |
Transfer Rate |
14,880pps for Ethernet port |
Mac Address |
8K MAC address table |
Connector |
10/100TX: 16 x M12, 4-pole D-coded connector, Female with auto MDI/MDI-X function |
LED |
Per unit: Power 1 (Green), Power 2 (Green), |
PoE pin assignment |
M12 port # 1~ # 16 support IEEE 802.3at/af End-point. Per port provides up to 30W |
Power Supply |
Dual input |
Power Consumption |
8W without PoE |
Power Budget |
Total 120W @ 24VDC |
Operating Humidity |
5% to 95% (Non-condensing) |
Operating Temperature |
-40°C ~ 75°C (-40°F ~ 167°F) (-IGN-E; -24TVI model) |
Storage Temperature |
-40°C ~ 85°C (-40°F ~ 185°F) |
Case Dimension |
Aluminum case, IP54 rated |
Weight |
TBC |
Installation |
Wall Mount Design |
EMC |
FCC Part 15, Subpart B ICES-003 Issue 7, |
Stability Testing |
EN 61373:2010 (Shock and Vibration) |
Verifications & Report |
EN 50155*:2021, |
Vehicle certificate |
E24 marking* (24VI model), R118 |
MTBF |
335,813 hrs (standards: IEC 62380) |
*Future Release
**Optional
DIMENSION

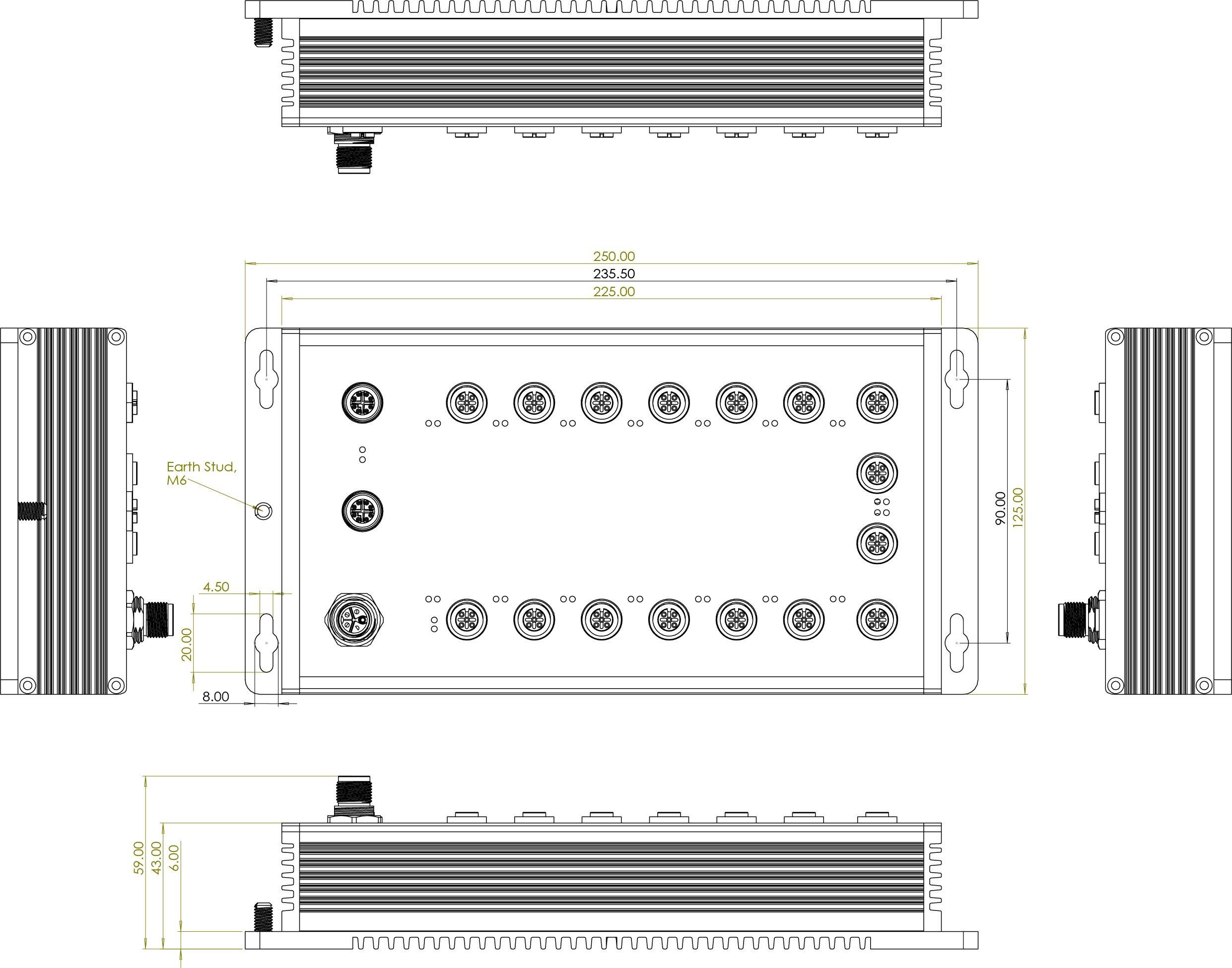

PoE model

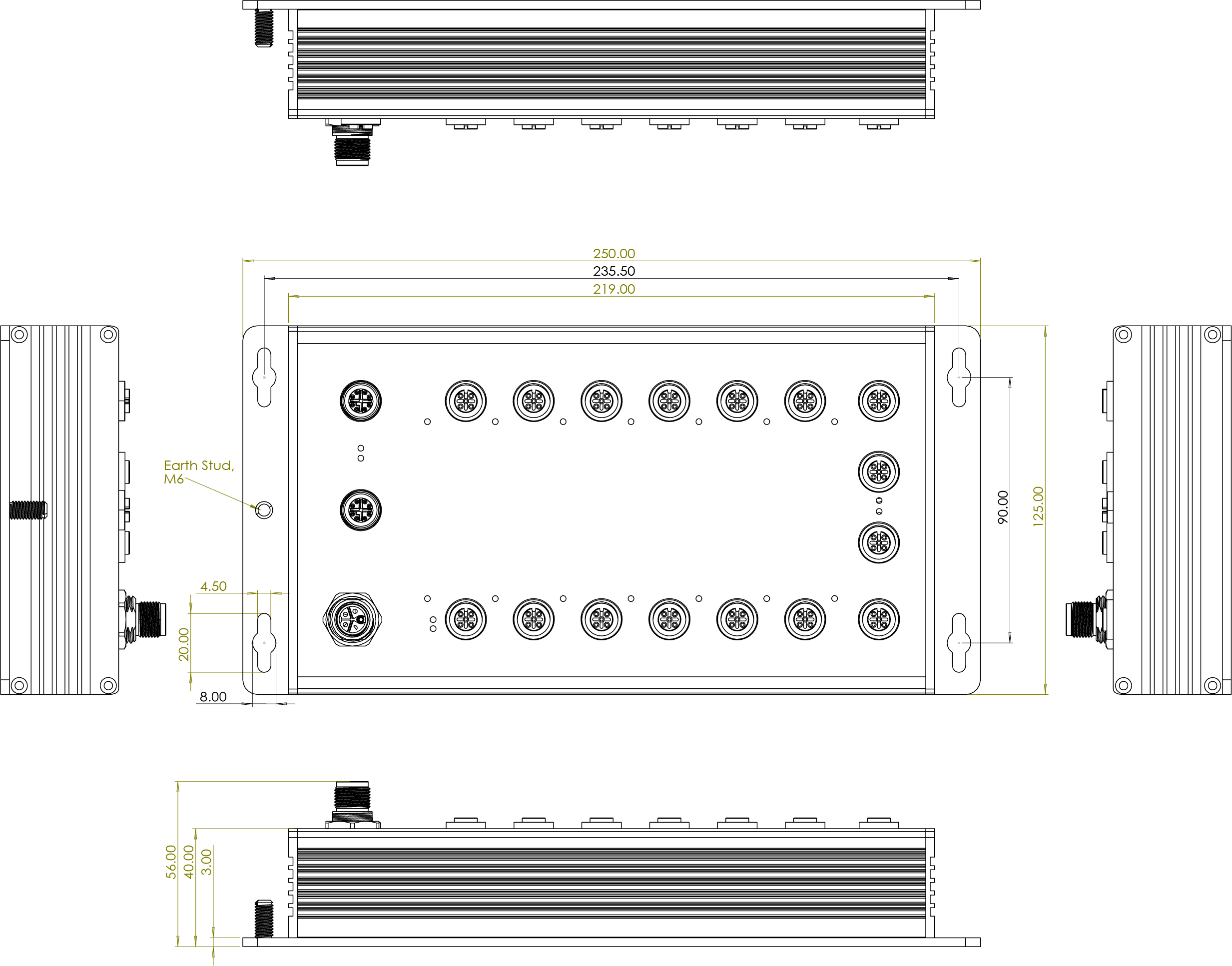

Non-PoE model
ORDERING INFORMATION
All model packages include M12 caps and wall mount brackets. All standard models are non-coating, optional coating models are available with –C model name; for push-pull inner-lock connector model add -PP
| P/N | Model name | Description |
|---|---|---|
| 8361-042 | TPES-0216T-16-54-24VI-IGN-E | 16 10/100TX PoE at/af + 2 1G IP54 rated unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input w/ PoE & Ethernet galvanic isolation; w/ignition |
| 8361-0422 | TPES-0216T-16-54-24VI-E | 16 10/100TX PoE at/af + 2 1G IP54 rated unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input w/ PoE & Ethernet galvanic isolation |
| 8361-0424 | TPES-0216T-16-54-24TVI-E | 16 10/100TX PoE at/af + 2 1G IP54 rated EN50155 Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual input w/ PoE & Ethernet galvanic isolation |
| 8361-0421 | TES-0216T-54-24VI-IGN-E | 16 10/100TX + 2 1G IP54 rated unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input w/ Ethernet galvanic isolation; w/ignition |
| 8361-0423 | TES-0216T-54-24VI-E | 16 10/100TX + 2 1G IP54 rated unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input w/ Ethernet galvanic isolation |
| 8361-0425 | TES-0216T-54-24TVI-E | 16 10/100TX + 2 1G IP54 rated EN50155 Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual input w/ Ethernet galvanic isolation |
OPTIONAL ACCESSORIES - Connector
| Model name | Description |
|---|---|
| 4106-00000097-001 ECONM12-05K(F)-S-180 |
5 pin M12 (Female) K-coded 180 degrees screw type connector for power supply |
| ECONM12-04D(M)-C-180 | 4 pin M12 (Male) D-coded 180 degree crimp type connector for data |
| ECONM12-08X(M)-SPEEDCON | 8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON |
OPTIONAL ACCESSORIES - Cable
| Model name | Description |
|---|---|
| 4106-00000096-001 ECABM12-05K(F)-90-1.5M |
5 pin M12 (Female) K-coded 90 degrees 1.5M cable for power supply |
| ECAB124030MJS | 4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm |
| ECABM12X83MSTP | 8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm |
| ECONM12-05K(F) to MCP 6P-20CM CABLE | 5 pin M12 (Female) K-coded 180 degree to 6 pin MCP power cable, 20cm (For ignition models) |
