16 10/100/1000T (PoE at/af) + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; 24VI/24TVI/48V input models


CE FCC WEEE RoHS2 EN50155 10GbE speed PoE 802.3at/af 30W Environmental Monitoring USB L3L - Layer3 Lite L3 - Layer3


Hardware Datasheet   Software Datasheet   Hardware Manual
For latest firmware and web UI user manual, please contact us.

OVERVIEW

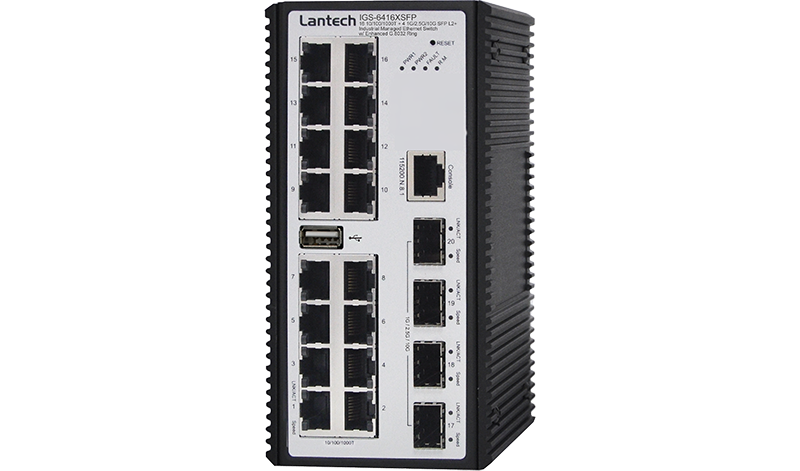

Lantech I(P)GS-6416XSFP is a high performance L2+ (All Gigabit) Ethernet switch with 16 100/1000T + 4 1G/2.5G/10G auto sensing SFP+ (w/16 PoE 802.3af/at Ports) which provides advanced security function for network aggregation deployment.


Up to 16 PoE at/af ports w/advanced PoE management; Ethernet power input galvanic isolation
Compliant with 802.3af/at standard, the PoE model is able to feed each PoE port up to 30 Watt at each PoE port for various IP PD devices. It supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD hangs then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE ports can be Enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI.


Galvanic isolation between power input and Ethernet power system, also the PoE galvanic isolation provides insulation between the power input to PoE Ethernet ports, preventing cabling and grounding incidents from damaging the Ethernet switch. The efficiency of the galvanically decoupled voltage converters can reach above 90%.


Lantech OS3 Platform with complete L2 management and upgradable optional L3 & communication protocols
The switch runs Lantech OS3 platform which is powerful with complete Layer 2 management features and optional upgradable for future expansion, such as Layer 3 Lite, Layer 3, etc. To learn more about the Lantech OS3 Platform, please refer to Lantech OS3/OS4 platform


Enhanced cybersecurity features with IEC 62443-4-1 certification
Lantech OS3 platform is designed with high standard of cybersecurity to prevent the threats from network attack such as DDoS attacks. To ensure the safety and reliability of communication networks, Lantech develops our products under strict international security standard and is certified with IEC 62443-4-1 network security standard. To learn more about Lantech cybersecurity software solution, please refer to Lantech OS3/OS4 platform


Miss-wiring avoidance, node failure protection, Loop protection
The switch also embedded several features for strong and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, the switch being able to alert with the LED indicator and disable ring automatically. Node failure protection ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.


User friendly GUI, Auto topology drawing, Enhanced Environmental Monitoring
The user-friendly UI, innovative auto topology drawing and topology demo makes the switch much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line. It supports enhanced environmental monitoring for actual input voltage, current, ambient temperature and total power load.


Editable configuration file; USB port for import/export configuration
The configuration file of the switch can be imported and edited with word processor for the following switches to configure with ease. The USB port can import/export the configuration from/to USB dongle and also to upgrade firmware from USB dongle. TFTP/HTTP firmware upgrade is supported.


Event log & message; 2DI + 2DO; Factory default button
The switch provides 2DI and 2DO. When disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the outside alarm and switch will send alert information to IP network with traps. The factory reset button can restore the setting back to factory default.


PoE models: Dual power 24VI/24TVI/48V input, high PoE budget
The PoE model is designed with dual power supply at 44~56VDC (48V model), 9~36VDC (24VI model) or 16.8~56VDC input (24TVI model). The 48V model can have 240W PoE budget. 24VI and 24TVI model can have 80W PoE budget (@24VDC input). The PoE galvanic isolation is built in for 24VI and 24TVI models.


Non PoE models: 24VI/24TVI input voltage selection
The non-PoE model is able to work at dual 9~36VDC (24VI model) or 16.8~56VDC (24TVI model). the Ethernet galvanic isolation is built in.


Industrial hardened design with high EFT and ESD protection
The switch features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, autonomous vehicles, surveillance, Wireless backhaul, Semi-conductor factory applications. The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.


E-marking certificate (24VI model) & EN50155 compliant (24TVI model)
The E-marking certificate (24VI model) makes it the most suitable switch for bus, carriage, other vehicles application as well as for industrial areas where the power source is limited with 24V but has demand of IP surveillance or VoIP applications. With EN50155 verification, the 24TVI model is best switch for railway on-board/track side, vehicle, and mining applications.


*Future release
**Optional

SPECIFICATIONS

Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 112Gbps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100/1000T: 16 x ports RJ-45 with Auto MDI/MDI-X function
Mini-GBIC: 4 x 1G/2.5G/10G SFP+ auto-sensing socket with DDMI
RS-232 connector: RJ-45 type
USB x 1
Power connector: 1 x 6-pole terminal block
DIDO: 1 x 6-pole terminal block

Network Cable

100Base-TX: 2-pair STP Cat. 5/ 5E/ 6 cable; EIA/TIA-568 100-ohm (100m)
1000Base-T: 4-pair STP Cat5E/6 cable;
10GBaseT:4-pair STP Cat6/6A/7 cable

Optical Cable

1Gbps:
Multi-mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
2.5Gbps
Multi-mode: 0 to 300 m, 850 nm (50/125 μm);
Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm)
WDM 1Gbps:
Single-mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 2.5Gbps
Single-mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm)
10Gbps
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm);
Single mode: 0 to 10 km/ 20 km, 1310 nm (9/125 μm); 0 to 40 km/ 80km/ 100 km, 1550 nm (9/125 μm)
WDM 10Gbps
Single-mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1270/1330 nm (9/125 μm); 0 to 80km, 1490/1550 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green)
Ethernet port: Link/Activity (Green), Speed (Green); 10G (Amber)
PoE: Link/Act (Green, PoE model); Mini-GBIC: Link/Activity (Green)

DI/DO

2 Digital Input (DI):
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output (DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

IPGS-6416XSFP
Dual DC input, 44~56VDC with Ethernet galvanic isolation (48V model);
Dual DC input, 9~36VDC with PoE and Ethernet galvanic isolation (24VI model)
Dual DC input, 16.8~56VDC with PoE and Ethernet galvanic isolation (24TVI model)
IGS-6416XSFP
Dual DC input, 9~36VDC with Ethernet galvanic isolation (24VI model);
Dual DC input, 16.8~56VDC with Ethernet galvanic isolation (24TVI model)

PoE Budget (PoE model)

240W @48VDC (48V model)
(50-56VDC input is recommended for 802.3at 30W applications)
80W @24VDC (24VI/24TVI model)
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

RJ-45 port # 1~#16 support IEEE 802.3at/af End-point, Alternative A mode.
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6

Power Consumption

Max. 27W (full load w/o PoE)

Case Dimension

Metal case. IP-30,
IPGS-6416XSFP
95.84 (W) x 135 (D) x 152 (H) mm
IGS-6416XSFP
74 (W) x 135 (D) x 152 (H) mm

Weight

1400g (IGS-6416XSFP, 24VI/24TVI model)
1950g (IPGS-6416XSFP, 24VI/24TVI model)
1800g (IPGS-6416XSFP, 48V model)

Installation

DIN Rail and Wall Mount** Design

EMI & EMS

EN 55011:2016
FCC Class A,
CE EN55035:2017/A11:2020,
CE EN55032:2015/A11:2020,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8,
CE EN61000-6-2

Safety

EN IEC 62368-1

Stability Testing

IEC60068-2-31 (Free fall),
IEC60068-2-27 (Shock),
IEC60068-2-6 (Vibration)

Railway compliance

EN50155:2017, EN50121-3-2:2015,
EN50121-4:2015, EN61373:2010 (24TVI model)

MTBF

586,082.5 Hrs.
(IEC 62380 standards)

Vehicle certificate

E24 marking (24VI model)

Warranty

5 years

Software Specifications

Lantech OS3 Platform

Learn more about Lantech OS3 Platform

*Future release
**Optional

DIMENSION

IPGS-6416XSFP

IGS-6416XSFP

ORDERING INFORMATION

P/N Model name Description
8350-864 IPGS-6416XSFP-16-48V 16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 44~56VDC input w/Ethernet galvanic isolation; PoE budget 240W
8350-865 IPGS-6416XSFP-16-48V-E 16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 44~56VDC input w/Ethernet galvanic isolation; PoE budget 240W
8350-86622
IPGS-6416XSFP-16-24VI 16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 9~36VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (E-Marking Certified)
8350-86634
IPGS-6416XSFP-16-24VI-E 16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 9~36VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (E-Marking Certified)
8350-86623
IPGS-6416XSFP-16-24TVI 16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (EN50155 Compliance)
8350-86633
IPGS-6416XSFP-16-24TVI-E 16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (EN50155 Compliance)
8350-86812
IGS-6416XSFP-24VI 16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 9~36VDC input w/ Ethernet galvanic isolation (E-Marking Certified)
8350-86912
IGS-6416XSFP-24VI-E 16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 9~36VDC input w/ Ethernet galvanic isolation (E-Marking Certified)
8350-86811
IGS-6416XSFP-24TVI 16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input w/ Ethernet galvanic isolation (EN50155 Compliance)
8350-86911
IGS-6416XSFP-24TVI-E 16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input w/ Ethernet galvanic isolation (EN50155 Compliance)
