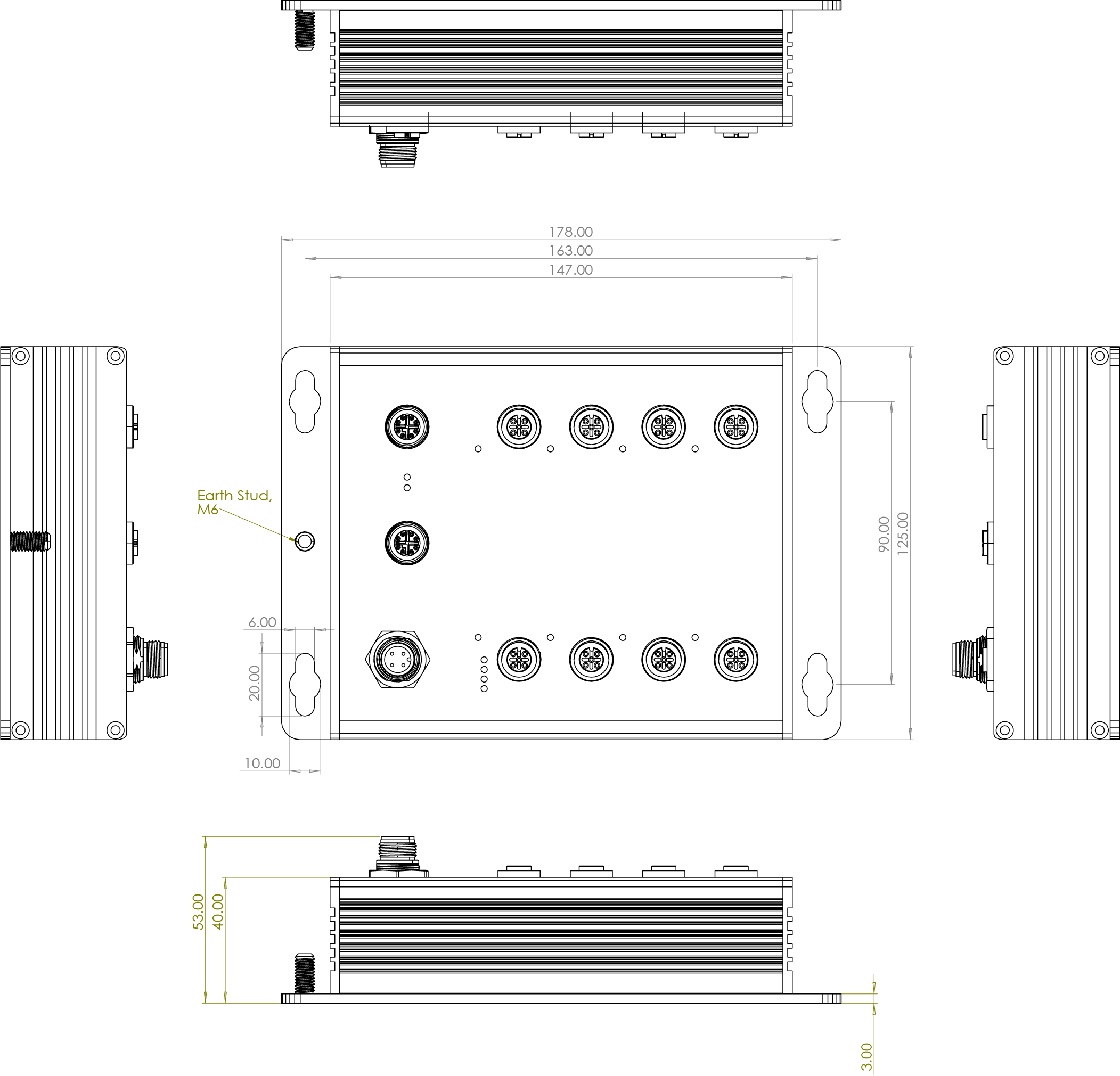

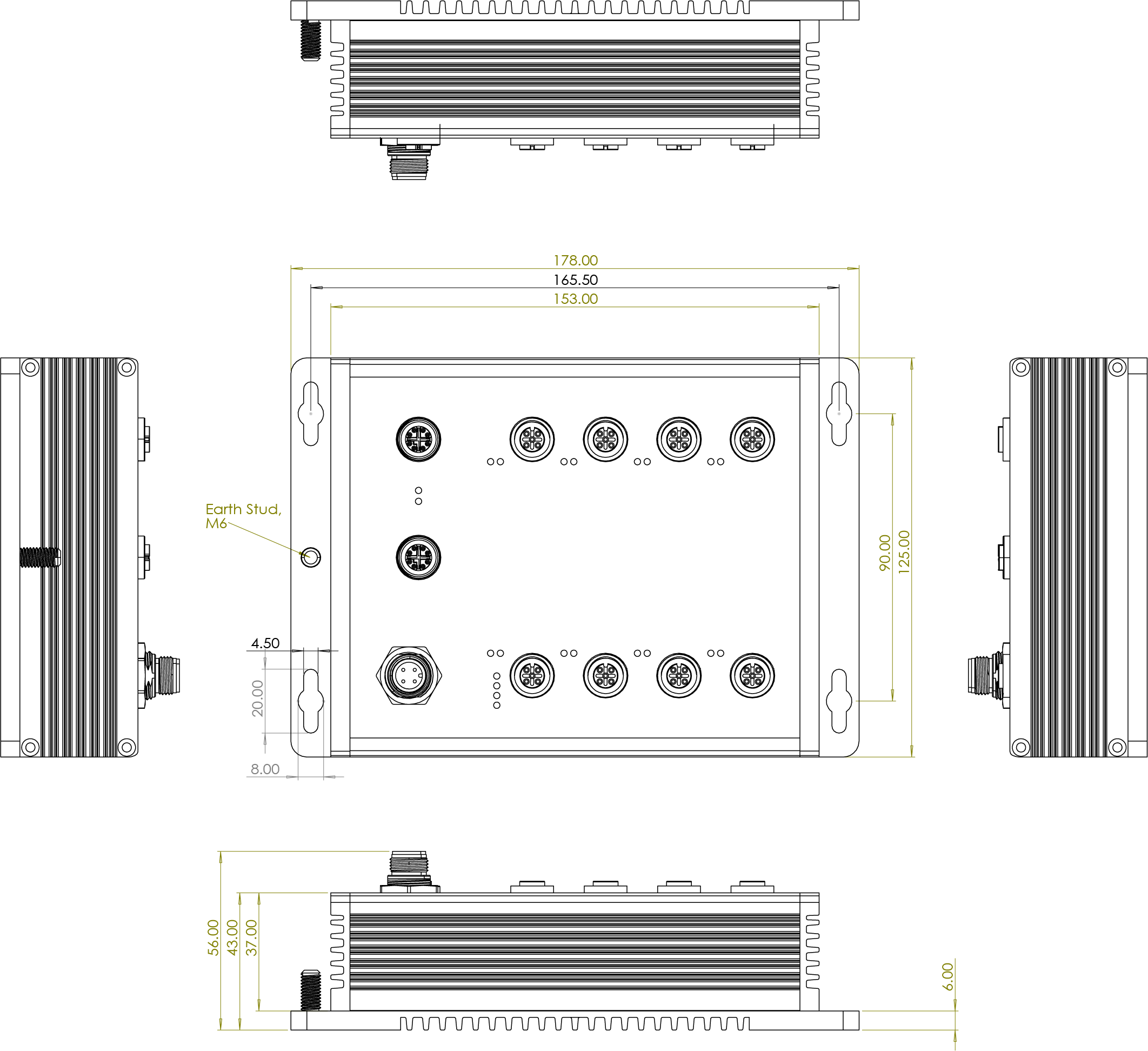

T(P)ES-3208MGT-WEB (IP54)

OVERVIEW

The Lantech T(P)ES-3208MGT-WEB (OS2 Pro platform) is a compact router switch with a PoE budget of 80W, designed for rail, metro, and vehicle 24V input Ethernet switch systems. It features 8 10/100TX + 2 1G/2.5G ports, along with 8 PoE 802.3af/at Ethernet ports (PoE model) with push-pull lock connectors for secure and fast installation. The switch offers Layer 2 management, NAT, Ignition PoE timer off, unique AUTO-FEED configuration, MQTT, advanced security functions and Health diagnostic snapshot maintenance to ensure reliable and easy onboard network deployment. It’s WebGUI make configuration straightforward for all skill levels. Additionally, the OPEN API document format enhances central management efficiency, making it ideal for fleet management and AIoT applications. Compliance with ITxPT*, and E-marking* certifications rest assured the product meets world-class standards for vehicle, rail onboard performance and reliability.

Redundant dual power input design (24VI model); polarity reverse protection; E-marking* & ITxPT* certificate; ISO 16750-2 compliant
T(P)ES-3208MGT-WEB is designed with dual power inputs that accept 9V~36V DC for 24VI vehicle use and is capable of withstanding EMI/RFI interference in the onboard network as well as environmental shocks and vibrations. The redundant power input design integrates inrush current protection also protect against polarity reversal. Additionally, the galvanic isolation feature shields the system from power transients often present in onboard networks. The switch complies with ITxPT* public transport standards and E-marking*. It also meets the requirements of ISO 16750-2 P5A (24V system DC 174V/8Ω/350ms), reducing the impact of high-frequency pulse voltage that could be incurred by motor applications.

PoE budget up to 80W for 8 Ports with PD detection, auto PD reboot, scheduling and Ethernet power input galvanic isolation with partial ports for PoE galvanic isolation
T(P)ES-3208MGT-WEB supports maximum PoE budget of 80W with advanced PoE management features, including PoE auto-detection and scheduling. The PoE detection function can identify if a connected Powered Device (PD) becomes unresponsive and then auto-restart the PD. Moreover, PoE scheduling allows for a pre-set power feeding schedule based on a routine timetable. Each PoE port can be enabled or disabled, and it provides information on voltage, current, power (W), and temperature. There is galvanic isolation between the power input and the Ethernet power system. The PoE galvanic isolation on PoE at/af ports provides insulation between the power input and the PoE Ethernet ports, preventing cabling and grounding incidents from damaging the Ethernet switch.

DDoS Security to Protect Switches and Servers
The Lantech OS2Pro platform is designed with robust security methods to prevent network threats, such as DDoS attack prevention, 802.1X security authentication, Dynamic ARP Inspection, IP Source Guard, and Port Security.

Lantech OS2 PRO Platform with advanced L2 management and L3 routing protocols incl. OSPF and RIP V1&V2
The switch developed on Lantech OS2 Pro platform is equipped with Layer 2 management and some Layer 3 routing protocols, including interVLAN Routing, OSPF and RIP V2. Engineered for diverse vehicle applications, this platform also supports a range of features such as NAT, Port forwarding, multiple Static IP address, DHCP server/option/client/port based, VLAN, DHCP over VLAN, IGMP, RSTP/ G.8032 enhanced ring recovery, LACP etc.

Support Open API document for Restful API for better switch performance
The switch supports an OPEN API that uses JSON format to access and manipulate data using GET, PUT, POST, and DELETE methods, thereby avoiding the CPU utilization associated with traditional SNMP management.

mDNS (Multicast DNS) and DNS server/client feature and MQTT-role of Publisher or Broker
It supports mDNS (Multicast DNS) which enables hosts in the LAN to discover and communicate with devices each other in compliance with the DNS protocol, without requiring a traditional DNS server. The switch can act as MQTT Publisher or Broker that can send data to the broker then broker distributors the “payload” to the subscribers all in a very lightweight protocol.

User-friendly GUI, Auto topology drawing, Editable configuration text file, Enhanced Environmental Monitoring, CPU watchdog, Snapshot switch information for trouble-shooting analysis
The user-friendly UI, innovative auto topology drawing, and topology demo make the Lantech switch much easier to use. The configuration file can be exported as a text file, allowing it to be easily edited and reconfigured for mass deployment. It supports enhanced environmental monitoring of actual input voltage, current, ambient temperature, and total power load where user can set threshold to trigger an alert or event log. The built-in watchdog design can automatically reboot the switch if the CPU becomes unresponsive. With the distinctive Snapshot feature, the switch can gather data, including port statistics, system core information, configuration, and event logs, either at a specific point in time or by scheduling, to address switch issues and analyze the root cause promptly.

OPTIONAL FEATURES

Optional Sleep Mode, Ignition timer; ITxPT Xstatus, DNS-SD and MQTT protocol on IGN model
To meet ITxPT specifications, the -IGN model supports Sleep Mode, in which no network features are active and remains the device's power consumption below 0.048W. In addition, the switch supports the ITxPT Xstatus, DNS-SD and MQTT protocol for comprehensive remote monitoring of Ethernet switch status. The -IGN model also includes the Ignition timer to configure both individual PoE port shutdown delays (PoE model) and system shutdown (entering Sleep Mode) from 30 seconds up to 60 minutes (system off timer default: 60 minutes). This eliminates the need for additional relay wiring and supports remote PoE timer configuration anytime, from anywhere.

Optional LantechView for Lantech devices maintenance
LantechView** can automatically discover Lantech devices on the network, providing seamless configuration management across multiple IP subnets and VLAN areas (single device and batch). It also supports firmware management, allowing single and batch verification and simultaneous upgrades to the latest firmware versions. To learn more about Lantech LantechView** software solutions, please refer to https://www.lantechcom.tw/global/eng/download/datasheet/D-LantechView.pdf

OS2 Pro web-managed vs. OS2 Pro Standard models comparison
