10 10/100TX + 2 10/100/1000T X coded w/8/10 PoE at/af EN50155 Ethernet Switch; 24V / 24TV model
- EN50155 / 61373 / 45545-2 verification
- IEEE802.3at/af up to 30W PoE output (For PoE model)
- Dual power input 9~36V (24V model) compliant with ISO 7637-2; Dual power input 16.8~56V (24TV model)
- Wide Operating Temperature from -40°C to 75°C
- IP54 Aluminum housing for best heat dissipation and preventing moist ingress
- E-mark* certificate for vehicle (24V model)
- ITxPT** design w/ ignition function (24V-IGN model)
OVERVIEW
Lantech T(P)ES-0210T is a 10 10/100Base-TX + 2 10/100/1000 Base-T w/8/10 port 802.3at/af PoE ports with M12-connectors unmanaged EN50155 Ethernet switch with IP54 rated protection which meets the high reliability requirements demanded by industrial rolling stock applications.
E-marking* certificate; ISO 7637-2 compliant and extended working temperature
The T(P)ES-0210T is designed to meet with critical network environment with IP54 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and vibration. It is compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start.
For a greater flexibility in application the T(P)ES-0210T supports an extended operating temperature range from -40°C to 75°C.
The E-marking* certificate makes it the most suitable switch for bus, carriage, other vehicles application as well as for industrial areas where the power source is limited with 12V or 24V but has demand of IP surveillance or VoIP applications.
EN50155, EN45545-2, EN61373 verification; High ESD protection
Lantech T(P)ES-0210T features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.
ITxPT** design with Ignition function using software
T(P)ES-0210T is designed with ITxPT public transport standards and also compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start. (24V-IGN model)
*Future Release
**Optional
FEATURES
- 10 10/100TX + 2 10/100/1000T Unmanaged EN50155 Ethernet Switch with M12 connectors and IP54 rated protection
- Supports IEEE802.3at/af feeding power up to 30W per PoE port
- Back-plane (Switching Fabric): 6 Gbps
- 8K MAC address table
- Wide Operating Temperature (-40°C ~75°C)
- Din rail** and wall mount design
- EN45545-2 Fire & Smoke, EN50155 and EN61373 shock/vibration verification
- E-mark* certificate for vehicle (24V model)
- ITxPT** design w/ ignition function (24V-IGN model)
*Future Release
**Optional
SPECIFICATIONS
Hardware Specifications
IEEE Standard |
IEEE802.3 10BASE-T Ethernet |
Transfer Rate |
14,880pps for Ethernet port |
Mac Address |
8K MAC address table |
Connector |
10/100TX: 10 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function |
LED |
Per unit: Power 1 (Green), Power 2 (Green), |
PoE pin assignment |
M12 port # 1~ # 12 support IEEE 802.3at/af End-point. Per port provides up to 30W |
Power Supply |
Dual input |
Power Consumption |
Max. 4.3W |
Power Budget |
Total 80W @ 24VDC and above |
Operating Humidity |
5% to 95% (Non-condensing) |
Operating Temperature |
-40°C ~ 75°C (-40°F ~ 167°F) |
Storage Temperature |
-40°C ~ 85°C (-40°F ~ 185°F) |
Case Dimension |
Aluminum case, IP54 |
Weight |
1.8kg |
Installation |
Wall Mount Design |
EMC |
FCC Class A, CE EN55011, |
Stability Testing |
EN61373 (Shock and Vibration) |
Verifications & Report |
EN50155/EN50121-3-2/EN50121-4 verification |
Vehicle certificate |
E13 marking* (24V model) |
MTBF |
TPES-0210T : 910,056 hours |
Warranty |
5 years |
*Future Release
**Optional

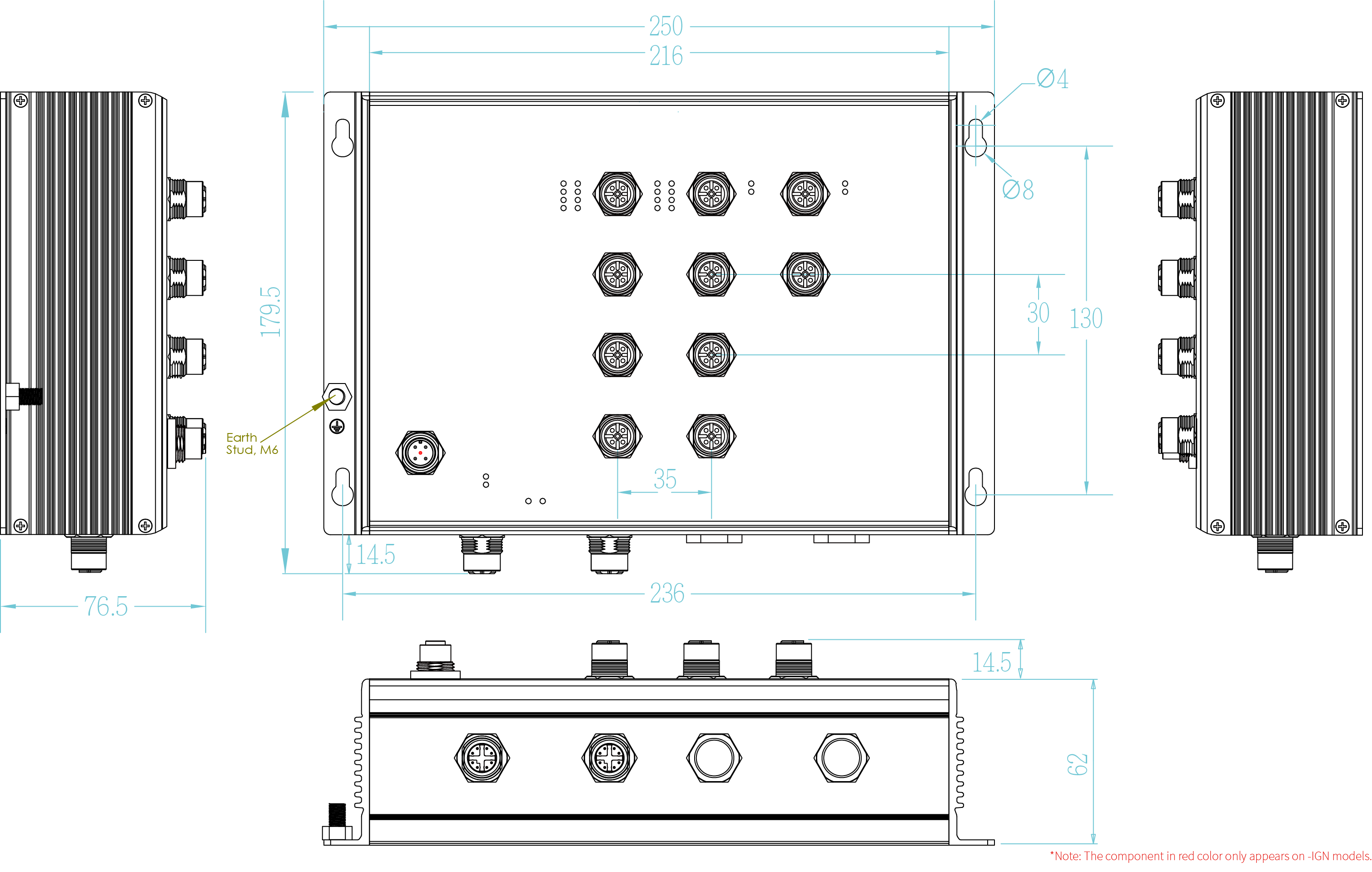

DIMENSION
ORDER INFORMATION
All model packages include M12 caps and wall mount bracket. All standard models are non-coating, optional coating models are available with –C model names. Optional bypass models are available with –BT.
| P/N | Model name | Description |
|---|---|---|
| 8350-342 | TPES-0210T-8-54-24V-IGN | 10 10/100TX + 2 10/100/1000T IP54 rated w/8 PoE at/af EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input; w/ignition |
| 8350-3421 | TPES-0210T-10-54-24V-IGN | 10 10/100TX + 2 10/100/1000T IP54 rated w/10 PoE at/af EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input; w/ignition |
| 8350-34201 | TPES-0210T-8-54-24V-IGN-BT | 10 10/100TX + 2 10/100/1000T IP54 rated w/8 PoE at/af EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input; w/ignition; with one pair Bypass |
| 8350-34211 | TPES-0210T-10-54-24V-IGN-BT | 10 10/100TX + 2 10/100/1000T IP54 rated w/10 PoE at/af EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input; w/ignition; with one pair Bypass |
| 8350-3422 | TPES-0210T-8-54-24V | 10 10/100TX + 2 10/100/1000T IP54 rated w/8 PoE at/af EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input |
| 8350-3423 | TPES-0210T-10-54-24V | 10 10/100TX + 2 10/100/1000T IP54 rated w/10 PoE at/af EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input |
| 8350-343 | TES-0210T-54-24V-IGN | 10 10/100TX + 2 10/100/1000T IP54 rated EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input; w/ignition |
| 8350-3431 | TES-0210T-54-24V-IGN-BT | 10 10/100TX + 2 10/100/1000T IP54 rated EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input; w/ignition; with one pair Bypass |
| 8350-3432 | TES-0210T-54-24V | 10 10/100TX + 2 10/100/1000T IP54 rated EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input |
| 8350-34221 | TPES-0210T-8-54-24TV | 10 10/100TX + 2 10/100/1000T IP54 rated w/8 PoE at/af EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual input |
| 8350-34231 | TPES-0210T-10-54-24TV | 10 10/100TX + 2 10/100/1000T IP54 rated w/10 PoE at/af EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual input |
| 8350-34321 | TES-0210T-54-24TV | 10 10/100TX + 2 10/100/1000T IP54 rated EN50155 Unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual input |
OPTIONAL ACCESSORIES - Connector
| Model name | Description |
|---|---|
| ECON120005PF | 5 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
| ECONM12-04D(M)-C-180 | 4 pin M12 (Male) D-coded 180 degree crimp type connector for data |
OPTIONAL ACCESSORIES - Cable
| Model name | Description |
|---|---|
| ECONM12-5P(F)70CM CABLE | 5 pin M12 (Female) A-coded 90 degree cable for power supply, 70cm |
| ECAB124030MJS | 4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm |
