8 10/100TX (PoE at/af) EN50155 Ethernet Switch
- IEEE802.3at/af up to 30W PoE output (for PoE model)
- Dual power inputs 16.8V~137.5V (WV model) or 9~36V (24V model) or 16.8~56V (24TV model)
- Wide Operating Temperature from -40°C to 75°C
- IP54/IP41 Aluminum housing for best heat dissipation and preventing moist ingress
- EN50155/50121-3-2/50121-4 and EN45545-2 Fire & Smoke verification
- E-mark certificate for vehicle (24V model)
- ITxPT labeled w/ignition function (24V-IGN model)
OVERVIEW
Lantech T(P)ES-0008CA is an 8 10/100 Base-T with M12-connectors unmanaged industrial Ethernet switch with IP54/IP41 rated protection which meets the high reliability requirements demanded by industrial rolling stock applications.
E-marking certificate, ITxPT; ISO 7637-2 compliant and extended working temperature
The T(P)ES-0008CA is designed to meet with critical network environment with IP54 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and vibration. It is labeled with ITxPT public transport standards and also compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start.
For a greater flexibility in application the T(P)ES-0008CA supports an extended operating temperature range from -40°C to 75°C.
The E-marking certificate makes it the most suitable switch for bus, carriage, other vehicles application as well as for industrial areas where the power source is limited with 12V or 24V but has demand of IP surveillance or VoIP applications.
*Future Release
**Optional
FEATURES
- 8 10/100TX Unmanaged Industrial Ethernet Switch with M12 connectors and IP54/IP41 rated protection
- Supports IEEE802.3at/af feeding power up to 30W per PoE port (for PoE model)
- Back-plane (Switching Fabric): 1.6 Gbps
- 8K MAC address table
- Wide Operating Temperature (-40°C ~75°C)
- Din rail** and wall mount design
- E-mark certificate for vehicle (24V model)
- EN50155/50121-3-2/50121-4 and EN45545-2 Fire & Smoke verification
- ITxPT labeled w/ ignition function (24V-IGN model)
*Future Release
**Optional
SPECIFICATIONS
Hardware Specifications
IEEE Standard |
IEEE802.3 10BASE-T Ethernet |
Transfer Rate |
14,880pps for Ethernet port |
Mac Address |
8K MAC address table |
Connector |
10/100TX: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function |
Rotary Switch |
Rotary switch for delay time configuration (-24V-IGN model) |
LED |
Per unit: Power 1 (Green), Power 2 (Green), |
PoE pin assignment |
M12 port # 1~ # 8 support IEEE 802.3at/af Endpoint. Per port provides up to 30W (-6 model: M12 port #1~#6 support IEEE 802.3at/af End-point) |
Power Supply |
Dual input |
Power Consumption |
3.5W without PoE (24V model) |
Power Budget |
Total 100W @ 24VDC and above |
Operating Humidity |
5% to 95% (Non-condensing) |
Operating Temperature |
-40°C ~ 75°C (-40°F ~ 167°F) |
Storage Temperature |
-40°C ~ 85°C (-40°F ~ 185°F) |
Case Dimension |
Aluminum case, |
Weight |
700g |
Installation |
Wall Mount Design |
EMC |
FCC Class A, CE EN55011, |
Stability Testing |
EN61373 (Shock and Vibration) |
Verifications & Report |
EN50155/EN50121-3-2/EN50121-4 verification |
Vehicle certificate |
E13 marking (24V model) |
MTBF |
1,240,250 hours |
Warranty |
5 years |
*Future Release
**Optional
DIMENSION

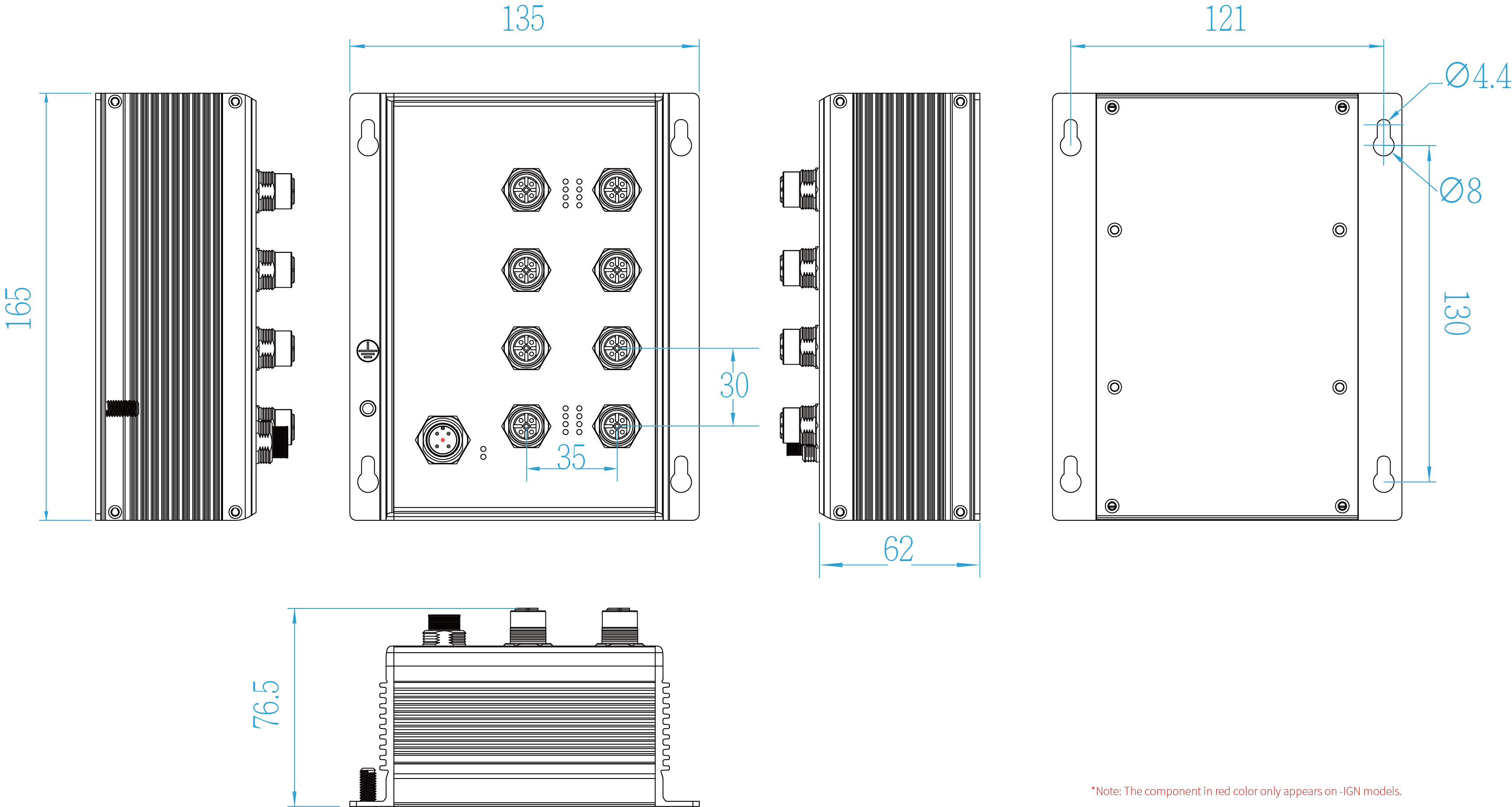

IP54 model

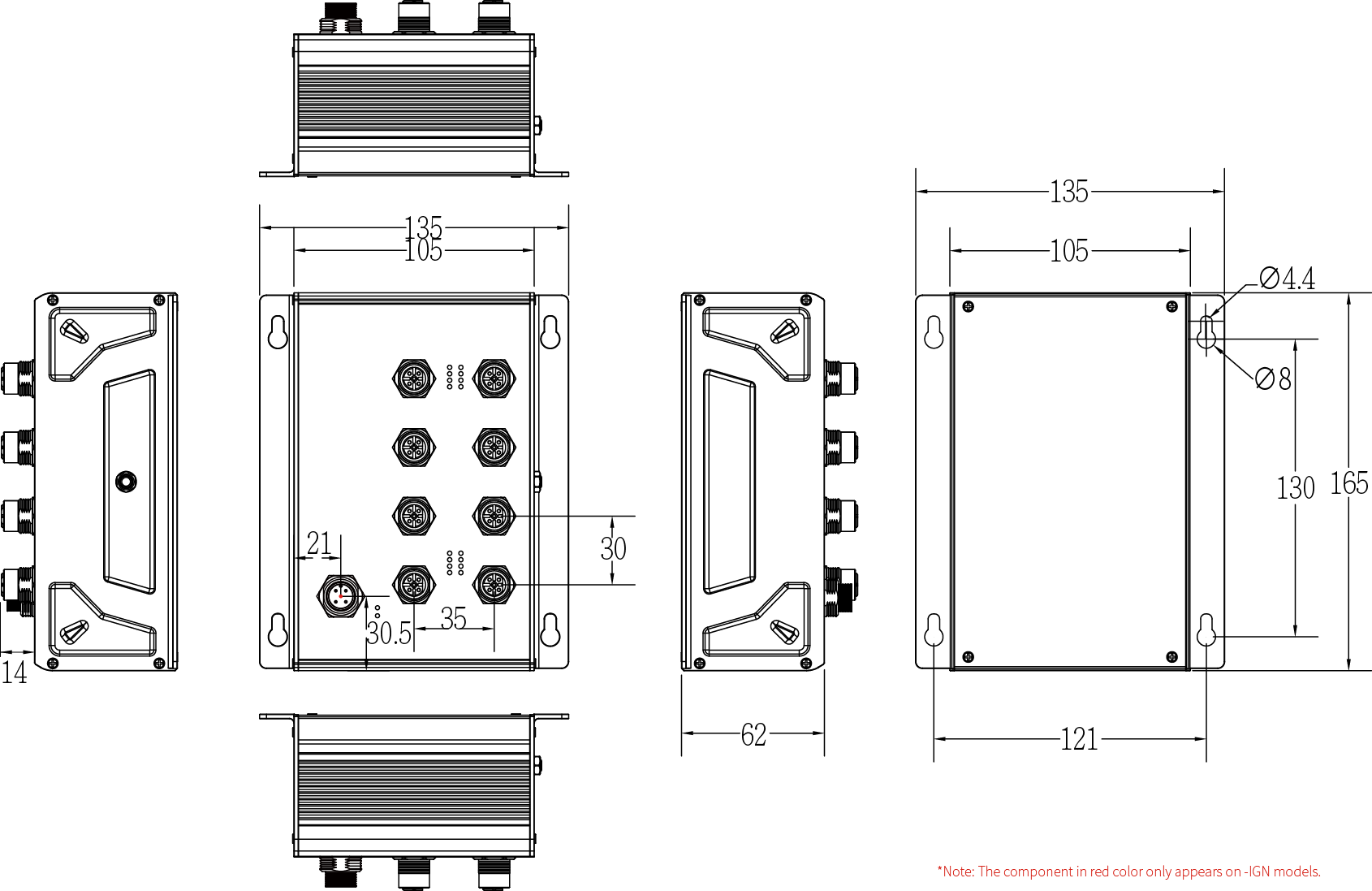

IP41 model
ORDER INFORMATION
All model packages include M12 caps and wall mount bracket. All standard models are non-coating, optional coating models are available with –C model name.
| P/N | Model name | Description |
|---|---|---|
| 8351-124 | TPES-0008CA-54-WV | 8 10/100TX w/8 PoE at/af IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~137.5VDC dual power inputs |
| 8351-1249 | TPES-0008CA-6-54-WV | 8 10/100TX w/6 PoE at/af IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~137.5VDC dual power inputs |
| 8351-1241 |
TPES-0008CA-54-24V | 8 10/100TX w/8 PoE at/af IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking certified; 9~36VDC dual power inputs |
| 8351-12491 |
TPES-0008CA-6-54-24V | 8 10/100TX w/6 PoE at/af IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking certified; 9~36VDC dual power inputs |
| 8351-12411 | TPES-0008CA-54-24TV | 8 10/100TX w/8 PoE at/af IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual power inputs |
| 8351-12497 | TPES-0008CA-6-54-24TV | 8 10/100TX w/6 PoE at/af IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual power inputs |
| 8351-1242 |
TPES-0008CA-54-24V-IGN | 8 10/100TX w/8 PoE at/af IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking and ITxPT certified; 9~36VDC dual power inputs w/ignition |
| 8351-12492 |
TPES-0008CA-6-54-24V-IGN | 8 10/100TX w/6 PoE at/af IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking and ITxPT certified; 9~36VDC dual power inputs w/ignition |
| 8351-1246 | TPES-0008CA-41-WV | 8 10/100TX w/8 PoE at/af IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~137.5VDC dual power inputs |
| 8351-12493 | TPES-0008CA-6-41-WV | 8 10/100TX w/6 PoE at/af IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~137.5VDC dual power inputs |
| 8351-1247 |
TPES-0008CA-41-24V | 8 10/100TX w/8 PoE at/af IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking certified; 9~36VDC dual power inputs |
| 8351-12494 |
TPES-0008CA-6-41-24V | 8 10/100TX w/6 PoE at/af IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking certified; 9~36VDC dual power inputs |
| 8351-12471 | TPES-0008CA-41-24TV | 8 10/100TX w/8 PoE at/af IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual power inputs |
| 8351-12496 | TPES-0008CA-6-41-24TV | 8 10/100TX w/6 PoE at/af IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual power inputs |
| 8351-1248 |
TPES-0008CA-41-24V-IGN | 8 10/100TX w/8 PoE at/af IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking and ITxPT certified; 9~36VDC dual power inputs w/ignition |
| 8351-12495 |
TPES-0008CA-6-41-24V-IGN | 8 10/100TX w/6 PoE at/af IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking and ITxPT certified; 9~36VDC dual power inputs w/ignition |
| 8351-1327 | TES-0008CA-54-WV | 8 10/100TX IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~137.5VDC dual power inputs |
| 8351-5659 |
TES-0008CA-54-24V | 8 10/100TX IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking certified; 9~36VDC dual power inputs |
| 8351-56591 |
TES-0008CA-54-24V-IGN | 8 10/100TX IP54 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking and ITxPT certified; 9~36VDC dual power inputs w/ignition |
| 8351-1326 | TES-0008CA-41-WV | 8 10/100TX IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~137.5VDC dual power inputs |
| 8351-1324 |
TES-0008CA-41-24V | 8 10/100TX IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking certified; 9~36VDC dual power inputs |
| 8351-13241 | TES-0008CA-41-24TV | 8 10/100TX IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual power inputs |
| 8351-1325 |
TES-0008CA-41-24V-IGN | 8 10/100TX IP41 rated EN50155 unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; E-marking and ITxPT certified; 9~36VDC dual power inputs w/ignition |
OPTIONAL ACCESSORIES - Connector
| Model name | Description |
|---|---|
| ECON120005PF | 5 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
| ECONM12-04A(F)-C-180 | 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
| ECONM12-04D(M)-C-180 | 4 pin M12 (Male) D-coded 180 degree crimp type connector for data |
OPTIONAL ACCESSORIES - Cable
| Model name | Description |
|---|---|
| ECONM12-5P(F)70CM CABLE | 5 pin M12 (Female) A-coded 90 degree cable for power supply, 70cm |
| ECONM12-4P(F)1.5M CABLE | 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm |
| ECAB124030MJS | 4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm |
