Industrial Multifunction VPN Router w/up to 2 LTE 4G + 2 serial ports + 4 Gigabit Ethernet (PoE) Switch + 2 WAN ports w/ Load Balancing, VPN, Protocol Gateway, Storage**; 24V input

  • Up to 2 concurrent mobility for 3G/4G LTE Link&GPS(2L model/4 SIMs)
  • Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model)
  • PoE model built-in 4 Gigabit PoE at/af with budget 80W@12V/24V/48V
  • VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE
  • Load Balancing built-in 5 mechanisms
  • Optional EMMC Flash storage on-board**
  • Optional eSIM chip enables router with versatile data plans**
  • Support NAT and Firewall
  • Support Modbus gateway on serial ports
  • Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports
  • Input voltage selection 9~56VDC (24V model)
  • Environmental monitoring for router inside info with voltage, current, temperature and total PoE load; LTE graphic signal strength
  • Editable login page of captive portal for hot-spot application
  • USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware
  • ITxPT compliant w/ ignition function**


FCC CE WEEE RoHS2


Datasheet   Hardware Manual
For latest firmware and web UI user manual, please send request to support@lantechcom.tw

OVERVIEW

Lantech I(P)MR-3004 series is a next generation industrial multi-function VPN router w/up to 2x LTE modem + 4x Gigabit Ethernet (PoE) switch + 2 WANs + 2 serial ports that supports advanced function of VPN, Load-balancing, Protocol gateway (Modbus), EMMC Flash Storage**, LTE quad SIM fail-over for industrial applications. The dual core CPU with 1.6GHz + 256M flash enables the router to multi-task smoothly.


Dual concurrent LTE design 4G/3G for load-balancing
With dual LTE module design (2L model), 4 SIM card slots, I(P)MR-3004 can allow auto-swap, failover & failback between multiple service providers for real non-stop connection. With concurrent LTE modules, it can also allocate bandwidth by “ Load Balancing with 8 schemes between multiple WANs.


With one mobile LTE module (1L model), 2 SIM card slots, I(P)MR-3004 provides redundant link between two service providers.


Both GPS and Russian GLONASS systems are supported.


Load Balancing with 5 mechanisms for multi-WANs
I(P)MR-3004 supports Load Balancing for LTE connections. There are five schemes for Load Balancing function:


Pack

Algorithm

Description

Basic

Fixed

All traffic will be distributed to a single WAN.

Failover

Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.

Priority

Select the active WAN according to priority.

Weighted Round-Robin

Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.

Custom Route

Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.


2 port serial connection, Modbus gateway
It builds in 2 port serial connection for RS232, RS422, RS485 in which RS422/RS485 has 2.5KV isolation protection.


The built-in Modbus gateway can convert Modbus RTU/ASCII to Modbus TCP for device control.


Optional EMMC Flash storage**
The optional EMMC flash storage on the router can offer 8G/16G/32G capacity.


Optional eSIM**
By replacing physical SIM, optional eSIM chip will allow users to purchase data plans at low prices from local carriers in the world.


VPN and firewall
Besides traditional VPN peer to peer tunneling, I(P)MR-3004 support latest Multi-Site VPN function that is an efficient way for mesh tunneling. The registration is under cloud service and encrypted by SSH makes the connection easy and safe.


It supports Multi-Site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE, and NAT for various VPN applications.


The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port.


Support Routing Protocol: Static route / RIPv2 / OSPF / BGP / EIGRP
Lantech router series supports two routing methods: static routing and dynamic routing. Dynamic routing makes use of RIPv2, OSPF, EIGRP and BGP. The user can either choose one routing method to establish the routing table.


DIDO for alarm & email notice; Event log; Remote Web control
2 sets of DIDO function can support additional high/low physical contact for designate applications besides Port / Power events, for example, DIDO function can trigger alarm if the router was moved or stolen. In case of events, the I(P)MR-3004 will immediately send email and trap.


When the router is at remote area with limited access, Web control can help to get router status or remotely reboot.


Wide range input voltage from 9V-56VDC; PoE model built-in 4 port PoE at/af with 80W@12V /24V/48V
The I(P)MR-3004 is able to work from 9VDC to 56VDC and PoE model built-in PoE at/af with PoE budget 80W@12V /24V/48V that is particular good for vehicle, rail train, depot etc. application.


Environmental monitoring for inside router info& alerting; Graphic LTE signal strength
The built-in environmental monitoring can detect router ambient temperature, voltage, current and total PoE load where can send the SNMP traps syslog and email when abnormal.


The graphic LTE signal strength shows connection status at a glance.


USB port for back up, restore configuration and upgrade firmware; Dual image firmware
The built-in USB port can upload/download the firmware through USB dongle for router replacement


It support dual-image firmware to choose which one to start.


Dual image firmware
It supports dual-image firmware to choose which one to start.


Editable login page of captive portal
The I(P)MR-3004 supports editable captive portal function that allows administrator to force end-users redirect to authentication page.


Ruggedized industrial design and FCC, CE & E-marking** certificate
The I(P)MR-3004 is designed to meet with industrial network environment with IP 30 housing. It passed tests under extensive Industrial EMI and environmental vibration and shocks standards.


With CE & FCC radio certification for LTE and E-marking** certificate, the I(P)MR-3004 is best for outdoor community, vehicle, process control automation etc. For more usage flexibilities, I(P)MR-3004 supports wide operating temperature from -40°C to 65°C.


Ignition Sensing*
Ignition sense allows you to delay power off your Ethernet switch with a designated time delay.


Built-in Managed Switch Function
Managed switch function is built-in and provides various L2+ functions for network aggregation deployment. It delivers ports and PoE management, VLAN, QoS, multicast, redundant ring, and security functions.


*Future Release
**Optional

FEATURES

  • Built-in 4 Gigabit switch + 2 WAN port
  • PoE with  80W@12V /80W@24V&48V PoE budget
  • EMMC-FLASH storage**8/16/32G
  • eSIM** to allow data-plan globally
  • 6 SMA type connectors for LTE, GPS
  • HTTP/HTTPS/Telnet/SSH & Administration access
  • Support IPv6 & IPv4 protocol
  • Support Routing Protocol: Static route / RIPv2 / OSPF / BGP / EIGRP
  • Support Multi-Site VPN for mesh tunneling as well as Open VPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE and NAT for secured network connection
  • The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port number.
  • Support SNMP v1/v2c/v3
  • NAT/ DMZ/ Port Forwarding
  • Dual concurrent LTE 4G/3G design (2L model)for auto-swap/failover/failback between multiple ISPs for continuous service (four SIM card slots)
  • One LTE 4G/3G w/ 2 SIM card design(1L model) for mobile redundancy
  • GPS/ GLONASS  (support by LTE module) connection
  • Load Balancing supports 5 mechanisms between multiple WANs
  • Pack

    Algorithm

    Description

    Basic

    Fixed

    All traffic will be distributed to a single WAN.

    Failover

    Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.

    Priority

    Select the active WAN according to priority.

    Weighted Round-Robin

    Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.

    Custom Route

    Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.


  • Built-in 2 x serial ports(RS232/RS422/RS485)
  • Serial port with 2.5KV isolation on RS422/RS485
  • Supports 2DI / 2DO (Digital Input / Output)
  • Built-in Modbus gateway converting Modbus RTU/ASCII to Modbus/TCP for serial ports
  • Event alerting by Syslog, SNMP Trap, Email, Relay ; Permanent local log rotation / Maxi 1K records
  • Remote Web control to get status or re-boot by Web
  • Graphic LTE signal strength
  • Support SNTP to synchronize system clock
  • Support LLDP discovery protocol
  • Support DHCP Server and Client
  • Built-in environmental monitoring for system input voltage, current and ambient temperature; Able to set alert when abnormal
  • Dual image firmware to choose which to start
  • Firmware upgradeable through TFTP/HTTP
  • Configuration backup and restoration
    • Supports text configuration file for system quick installation
    • USB port to upload/download firmware by USB dongle
  • Reset button for factory default mode
  • IP 30 housing for industrial environment
  • DIN-Rail and Wall-mount** installation
  • Operation temperature -40°C to 65°C
  • ITxPT compliant w/ ignition function**
*Future Release
**Optional

SPECIFICATIONS

Cellular Interface

Location Solutions

GPS, Glonass (EU/Americas)
GPS, Glonass, Beidou, Galileo (APAC model only)

Band Options

Asia-Pacific (APAC model)
LTE = B1, B3, B5※, B7, B8, B18※, B19※, B21※, B28, B38 (TDD), B39※ (TDD), B40 (TDD), B41※ (TDD)
DC-HSPA+/ HSPA+/ HSPA/ UMTS = B1, B5※, B6※, B8, B9※, B19※

Europe & North America (EUNA model)
LTE = B1, B2※, B3, B4※, B5※, B7, B8, B12※, B13※, B20, B25※, B26※, B29※, B30※, B41※ (TDD)
DC-HSPA+/ HSPA+/ HSPA/ UMTS = B1, B2※, B3, B4※, B5※, B8

World Wide (WW model)
LTE = B1, B2※, B3, B4※, B5※, B7, B8, B9※, B12※, B13※, B18※, B19※, B20, B26※, B28, B29※, B30※, B32※, B41※ (TDD), B42※ (TDD), B43※ (TDD), B46※ (TDD), B48※ (TDD), B66※
WCDMA = B1, B2※, B3※, B4※, B5※, B6※, B8, B9※, B19※

Data Rates – LTE

Asia-Pacific (APAC model)
Downlink (Cat 6):
FDD: 300 Mbps
TDD: 222 Mbps
Uplink (Cat 6):
FDD: 50 Mbps
TDD: 26 Mbps

Europe & North America (EUNA model)
Downlink (Cat 6):
FDD: 300 Mbps
TDD: 222 Mbps
Uplink (Cat 6):
FDD: 50 Mbps
TDD: 26 Mbps

World Wide (WW model)
Downlink:
Cat 12: 600 Mbps
Cat 9: 450 Mbps
Uplink:
Cat 13: 150 Mbps

Physical Ports & System

Connectors

10/100/1000T: 6x ports RJ 45 with 2 WAN ports and 4 PoE ports (PoE model)
USB x 1
RS-232 connector: 1 x RJ 45
Serial connector : 2 DB9
SIM card slots : 4(2L) or 2(1L)
2L model
SMA connector for LTE: 4 (female)
SMA connector for GPS: 2 (female)
1L model
SMA connector for LTE: 2 (female)
SMA connector for GPS: 1 (female)
Power & P-Fail connector: 1 x 6-pole terminal block
DIDO : 1 x 5-pole terminal block

Serial Baud Rate

1000Kbps high data rate,250kbps normal for RS232 ; 20Mbps high data rate,250kbps normal for RS422/RS485

Serial Data Bits

5, 6, 7, 8

Serial Parity

odd, even, none, mark, space

Serial Stop Bits

1, 1.5, 2

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+,Tx-, Rx+, Rx-,GND

RS-485 (2-wire)

Data+, Data-,GND

Isolation protection

RS422/RS485 2.5KV isolation; 8KV contact & 15KV air
RS232 8KV contact and 15KV air ESD
DIDO 2.5KV isolation
Input power 1.5KVA isolation

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA

LED Indicators

Power & System indicator

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) , Ring Master(Green), Storage(Green), Serial1/Serial2(Green)

10/100/1000Base-T(X) port indicator

Link/Activity (Green), Speed (1000T: Yellow; 10/100TX: off), PoE (Green, PoE model)

SIM

Green for Link/Act

GPS

Green for Link/Act

Fault

Red: Ethernet link down or power down

Fault Contact

Relay

Relay output to carry capacity of 1A at 24VDC

Power

Input power

Dual DC input, 9~56VDC (24V model)

PoE Budget (PoE model)

80W@12V/24V/48V

Power consumption (Typ.)

30.5 Watts

Physical Characteristic

Enclosure

IP 30 Metal case

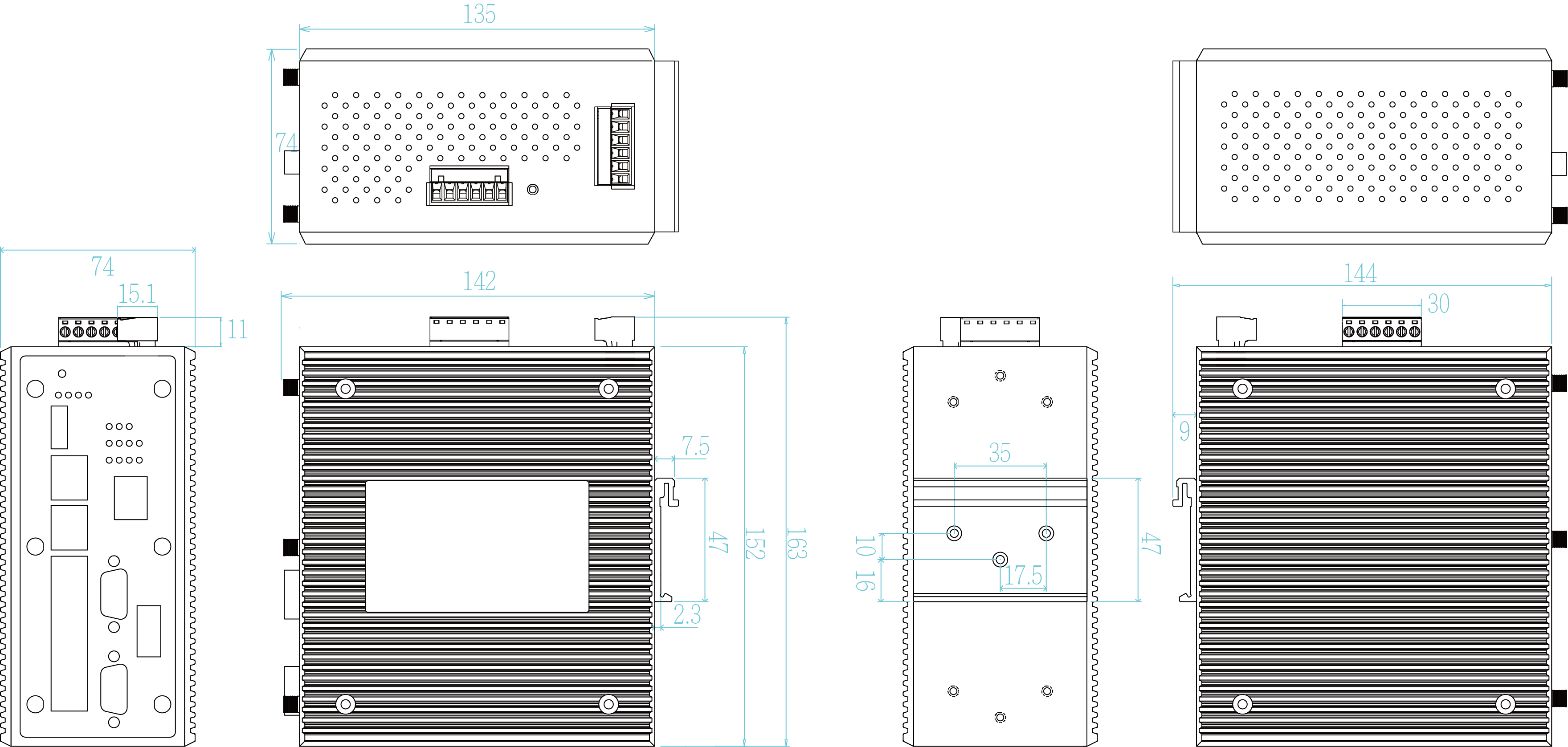

Dimension

74 (W) x 142 (D) x 152 (H) mm

Weight

1000g

Environmental

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Temperature

-40°C ~ 65°C (-40°F ~ 149°F)

Operating Humidity

5% to 95% Non-condensing

Regulatory Approvals

Safety

EN 62368

EMC

FCC Part 15B Class A,
EN 55032: 2015,
EN 55024: 2010
IEC 61000-6-2,
IEC 61000-6-4

EMS

IEC 61000-4-2 (ESD),
IEC 61000-4-3 (RS),
IEC 61000-4-4 (EFT),
IEC 61000-4-5 (Surge),
IEC 61000-4-6 (CS),
IEC 61000-4-8 (PFMF)

Radio Frequency

EN 301 489-1,
EN 301 489-17,
EN 301 489-19,
EN 301 489-52
EN 301 908-1※,
EN 303 413,
EN 62311

Vehicle certificate

E13**
ITxPT compliant**

MTBF

NA

Warranty

5 years

Software

IPv6/4

Present

VPN

Multi-site VPN, Open VPN, L2TP, IPSec

Firewall

DDoS, IP address filter / Mac address filter / TCP/UDP port number

Login Security

Supports IEEE802.1x Authentication/RADIUS

Access Security

HTTP/HTTPS/Telnet/SSH & Administration; SNMP v1/v2/v3 access for authentication via MD5/SHA(v3) and Encryption via DES/AES(v3)

Routing

Static route / RIPv2 / OSPF / BGP / EIGRP

Protocol

PPPoE Client,DHCP server/client, Adjustable MTU, Port forwarding (NAPT), DMZ; NAT, SNTP, Firewall(Firewall(DDoS; IP address filter / Mac address filter /  TCP/UDP port name ),VRRP, DDNS

Protocol Gateway

Modbus on serial ports

Management

SNMP v1,v2c,v3/ Web/Telnet/CLI

Environmental Monitoring

System status for input voltage, current , ambient temperature to be shown in GUI and sent alerting if any abnormal status

Graphic signal display

Graphic LTE signal strength

Timer

Built-in Real Time Clock to keep track of time always(RTC)

Discovery

IEEE 802.1ab Link Layer Discovery Protocol (LLDP)

SNMP trap

Device cold / warm start
Port link up / link down
DI/DO high / low

Remote Web control

To reboot router by WebUI

Captive portal

Editable captive portal login page

Maintenance

Firmware upgradeable through TFTP/HTTP

Configuration backup & restore

Supports text configuration file for system quick installation
USB port to upload/download firmware by USB dongle

Software - Load Balancing

5 schemes for multiple WAN(client mode)

Pack

Algorithm

Description

Basic



Fixed

All traffic will be distributed to a single WAN.

Failover

Routes connections through preferred WAN link while others stand-by. Sequentially activate another link if preferred link failure occurs.

Priority

Routes connections through preferred WAN link while others stand-by. Sequentially activate other links if overflow occurs.

Weighted Round-Robin

Evenly distribute the traffic over all working WAN links in circular order according to the specified weights

Custom Route

Routing through the selected WAN for each specific traffic ex: TCP/UDP port number and IP address.

*Future Release
**Optional
※Standard test of the following bands are not listed in EN 301 908-1 report:
(APAC not listed bands) LTE = B5, B18, B19, B21, B39, B41
WCDMA = B5, B6, B9, B19;
(EUNA not listed bands) LTE = B2, B4, B5, B12, B13, B25, B26, B29, B30, B41
WCDMA = B2, B4, B5;
(WW not listed bands) LTE = B2, B4, B5, B9, B12, B13, B18, B19, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66
WCDMA = B2, B3, B4, B5, B6, B9, B19

DIMENSION

ORDER INFORMATION

For 24V model are all available with –IGN model name (w/ ignition)

P/N Model name Description
8664-011 IPMR-3004-2L-2S-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 4 Giga PoE at/af Switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8664-012 IPMR-3004-2L-2S-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 4 Giga PoE at/af Switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8664-013 IPMR-3004-2L-2S-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 4 Giga PoE at/af Switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8664-0111 IPMR-3004-2L-2SA-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8664-0121 IPMR-3004-2L-2SA-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8664-0131 IPMR-3004-2L-2SA-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8664-0112 IPMR-3004-2L-2SB-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8664-0122 IPMR-3004-2L-2SB-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8664-0132 IPMR-3004-2L-2SB-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8664-021 IPMR-3004-1L-2S-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 4 Giga PoE at/af Switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8664-022 IPMR-3004-1L-2S-24V-WW Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 4 Giga PoE at/af Switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8664-023 IPMR-3004-1L-2S-24V-APAC Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS232 serial ports and 4 Giga PoE at/af Switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8664-0211 IPMR-3004-1L-2SA-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8664-0221 IPMR-3004-1L-2SA-24V-WW Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8664-0231 IPMR-3004-1L-2SA-24V-APAC Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS422 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8664-0212 IPMR-3004-1L-2SB-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8664-0222 IPMR-3004-1L-2SB-24V-WW Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8664-0232 IPMR-3004-1L-2SB-24V-APAC Industrial One LTE(Dual SIM) Load Balancing VPN Mobile Router w/ 2 RS485 serial isolated ports and 4 Giga PoE at/af Switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8666-001 IMR-3004-2L-2S-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8666-002 IMR-3004-2L-2S-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8666-003 IMR-3004-2L-2S-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8666-0011 IMR-3004-2L-2SA-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8666-0012 IMR-3004-2L-2SB-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8666-0021 IMR-3004-2L-2SA-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8666-0022 IMR-3004-2L-2SB-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8666-0031 IMR-3004-2L-2SA-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8666-0032 IMR-3004-2L-2SB-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8666-004 IMR-3004-1L-2S-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8666-005 IMR-3004-1L-2S-24V-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8666-006 IMR-3004-1L-2S-24V-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8666-0041 IMR-3004-1L-2SA-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8666-0042 IMR-3004-1L-2SB-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; dual 9~56VDC; -40°C~65°C
8666-0051 IMR-3004-1L-2SA-24V-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8666-0052 IMR-3004-1L-2SB-24V-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; dual 9~56VDC; -40°C~65°C
8666-0061 IMR-3004-1L-2SA-24V-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8666-0062 IMR-3004-1L-2SB-24V-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; dual 9~56VDC; -40°C~65°C
8666-007 IMR-3004-2L-2S-HV-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-008 IMR-3004-2L-2S-HV-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-009 IMR-3004-2L-2S-HV-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0071 IMR-3004-2L-2SA-HV-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0072 IMR-3004-2L-2SB-HV-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0081 IMR-3004-2L-2SA-HV-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0082 IMR-3004-2L-2SB-HV-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0091 IMR-3004-2L-2SA-HV-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0092 IMR-3004-2L-2SB-HV-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-010 IMR-3004-1L-2S-HV-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-011 IMR-3004-1L-2S-HV-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-012 IMR-3004-1L-2S-HV-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0101 IMR-3004-1L-2SA-HV-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0102 IMR-3004-1L-2SB-HV-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; EU and US band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0111 IMR-3004-1L-2SA-HV-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0112 IMR-3004-1L-2SB-HV-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; worldwide band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0121 IMR-3004-1L-2SA-HV-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS422 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C
8666-0122 IMR-3004-1L-2SB-HV-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS485 serial isolated ports and 4 Giga Ethernet managed switch + 2 WAN ports; APAC band ; single high power 90~305VAC / 120~430VDC; -40°C~65°C


EMMC Flash Storage

P/N Description
8850-113 8G
8850-114 16G
8850-115 32G


OPTIONAL ACCESSORIES - Management System

P/N Model name Description
9000-121 InstaAir Cloud Based Fleet Management System for Routers ( View Datasheet )


OPTIONAL ACCESSORIES - Cellular Antenna

Model name Description
ANT11000041
2G/3G/4G dipole antenna, 791-960/1710~2170/2500~2700MHz, 3dBi, SMA plug, EU
ANT11000042
2G/3G/4G dipole antenna, 704-960/1710~2170MHz, 3dBi, SMA plug, US
ANT11000044
2G/3G/4G dipole antenna, 704-960/1710~2690MHz, 1.6dBi, SMA plug, EU
ANT11000045
2G/3G/4G dipole antenna, 698-960/1710~2690MHZ, 3dBi, SMA plug, US


OPTIONAL ACCESSORIES - GPS Antenna

Model name Description
ANT12000001
SMA GPS antenna, 28dB, 300m


OPTIONAL ACCESSORIES - Antenna Base

Model name Description
ADA11000053
Magnetic antenna base for 3G/4G, RP SMA Jack Base, Length : 1M
