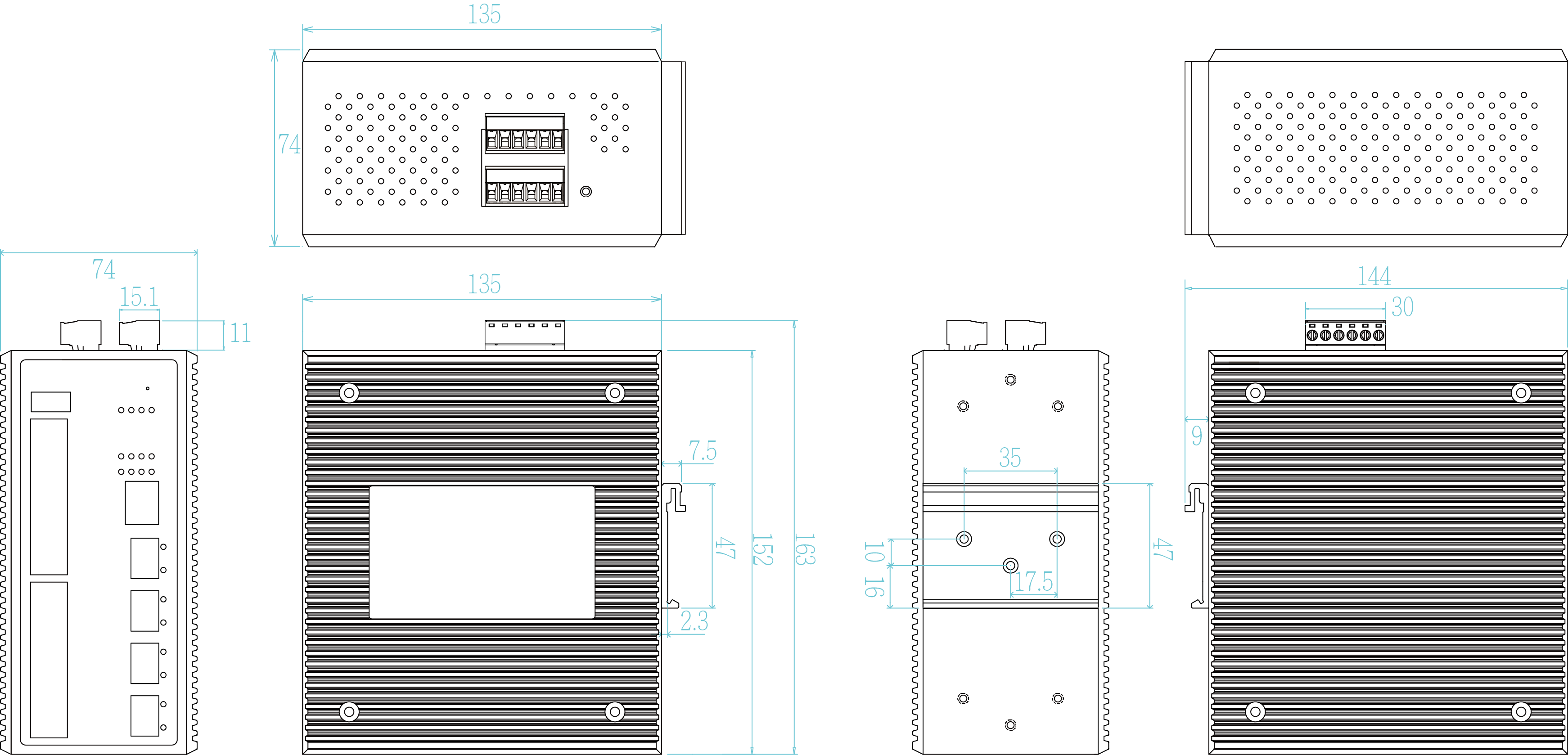

Lantech IPGS-L5408MGSFP is a high performance OS3 Industrial Ethernet switch with 8 10/100/1000T + 4 1G/2.5G SFP w/8 802.3bt PoE ports (-PBT model) which provides advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports enhanced mode with easy configuration. The comprehensive QoS, advanced security including INGRESS ACL L2/L3, TACACS+, SSH v2/SSL and Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port are supported and are also required in large network. It also supports10K Jumbo frames.
Up to 8 PoE 802.3bt ports w/advanced PoE management
Compliant with 802.3bt standard, the Lantech IPGS-L5408MGSFP being able to feed each PoE port up to 60 Watt at each PoE port for various IP PD device(-PBT model). Lantech IPGS-L5408MGSFP supports advanced PoE management including PoE detection and scheduling. PoE detection can detect if the connected PD hangs then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Each PoE port can be Enabled/disabled, get the voltage, current, Watt, and temperature info displayed on WebUI.
Miss-wiring avoidance, Node failure protection, Loop protection
The IPGS-L5408MGSFP also embedded several features for strong and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IPGS-L5408MGSFP being able to alert with the LED indicator and disable ring automatically. Node failure protection ensures the Ethernet switches in a ring to survive after power breakout is back. The status can be shown in NMS when each Ethernet switch is back. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
DHCP option 82 & Port based, Mac based DHCP, Option66, DHCP Snooping, IPv6 DHCP server
DHCP server can assign dedicated IP address by MAC or by port (Port based for single switch), it also can assign IP address by port for multiple switches with single DHCP option82 server. DHCP Snooping is supported. DHCP Option66 server can offer IP address of TFTP server to DHCP client for VOIP application. Basic IPv6 DHCP service can be supported.
Support PXE to verify switch firmware with the latest or certain version
The switch can check its firmware version during booting time via PXE protocol. If switch finds any newer version, it will upload automatically.
User friendly GUI, Auto topology drawing
The user-friendly UI, innovative auto topology drawing and topology demo makes IPGS-L5408MGSFP much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line.
Enhanced G.8032 ring, 8 MSTI MSTP; MRP ring
Lantech IPGS-L5408MGSFP features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering multicast packets. It also supports various ring topologies that covers enhanced ring and basic ring by easy setup than others. It supports MSTP that allows RSTP over VLAN for redundant links with 8 MSTI. MRP (Media Redundancy Protocol) can be supported for industrial automation networks.
Built-in IEC 61375-3-4 ECN (Ethernet Consist Network) to work with IEC61375-2-5 TBN
Lantech OS3 Ethernet switches comply with IEC 61375-3-4 (ECN) standard. The support of Ethernet Consist Network allows interconnection between end devices located in single consist of train and interoperability with IEC61375-2-5 (TBN).
Enhanced Storm control
Storm control prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on one of the physical interfaces and the detection is more precise and reaction is more efficient.
Optional L3Lite/L3* to be upgradable
Lantech OS3 is optional upgradable to L3 Lite for future expansion. The optional L3Lite includes editable routing table, VRRP, Router-on-a-stick, Inter- VLAN routing.
QinQ, QoS and GVRP supported
It supports the QinQ, QoS and GVRP for large VLAN segmentation.
Protocol based VLAN; Subnet based VLAN
The protocol-based VLAN processes traffic based on protocol. It filters IP traffic from nearby end-stations using a particular protocol such as IP, IPX, ARP or other Ethernet-types in a Hex value. Subnet based VLANs group traffics into logical VLANs based on the source IP address and IP subnet. The above features can help to build VLAN in the network mixed with managed and un-managed switch as to define packets to which VLAN group based on protocol or subnet.
IGMPv3, GMRP, router port, MLD Snooping, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port, MLD snooping and static multicast forwarding binding by ports for video surveillance application.
Editable configuration file; USB port for upload/download configuration
The configuration file of Lantech IPGS-L5408MGSFP can be exported and edited with word processor for the following Ethernet switches to configure with ease. The USB port can upload/download the configuration from/to USB dongle.
Event log & message; 2 DI + 2 DO; Factory default pin
IPGS-L5408MGSFP provides 2DI and 2DO. When disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the outside alarm and switch will send alert information to IP network with email and traps. The factory reset pin can restore the setting back to factory default.
Enhanced environmental monitoring for switch inside information
The enhanced environmental monitoring can detect switch overall temperature, total power load, actual input voltage and current it also can send the SNMP traps alert when abnormal.
Dual power 24V/48V input with max budget
The Lantech IPGS-L5408MGSFP is designed with dual power supply at 44~56VDC (48V model) or 12V~57VDC input (24V model). The 48V model can have 240W (480W for 802.3bt application) PoE budget while 24V model can have 120W (24V input) budget. A voltage which can be minimal 0,5 Un nominal voltage (when Vin≧36V) and/or a voltage which can be maximal 1,5 Un nominal voltage for more than 1000 consecutive ms (one second).
Industrial hardened design with high EFT and ESD protection

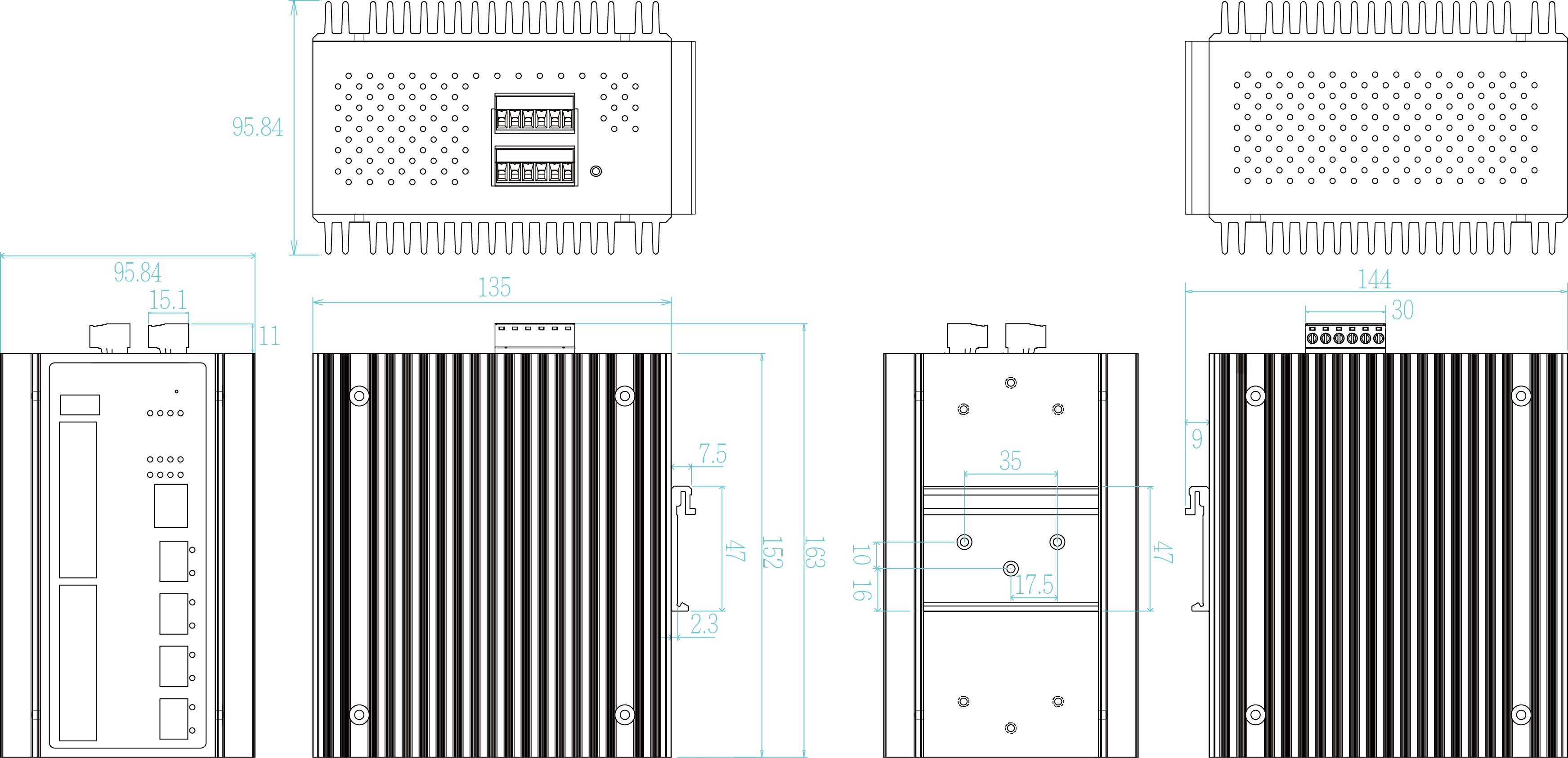

Lantech IPGS-L5408MGSFP features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. Featured with relay contact alarm function, the IPGS-L5408MGSFP being able to connect with alarm system in case of power failure or port disconnection. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory applications. The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.
|8350-85701||IPGS-L5408MGSFP-48V-PBT||8 10/100/1000T + 4 1G/2.5G SFP w/8 PoE 802.3af/at/bt for 60W budget OS3 Managed Ethernet Switch; dual 44~56VDC input; -20°C to 60°C; IP30 housing|
|8350-85711||IPGS-L5408MGSFP-48V-PBT-E||8 10/100/1000T + 4 1G/2.5G SFP w/8 PoE 802.3af/at/bt for 60W budget OS3 Managed Ethernet Switch; dual 44~56VDC input; -40°C to 75°C; IP30 housing|
|8350-857||IPGS-L5408MGSFP-48V||8 10/100/1000T + 4 1G/2.5G SFP w/8 PoE 802.3af/at OS3 Managed Ethernet Switch; dual 44~56VDC input; -20°C to 60°C; IP30 housing|
|8350-8571||IPGS-L5408MGSFP-48V-E||8 10/100/1000T + 4 1G/2.5G SFP w/8 PoE 802.3af/at OS3 Managed Ethernet Switch; dual 44~56VDC input; -40°C to 75°C; IP30 housing|
|8350-8572||IPGS-L5408MGSFP-24V||8 10/100/1000T + 4 1G/2.5G SFP w/8 PoE 802.3af/at OS3 Managed Ethernet Switch; dual 12~57VDC input; -20°C to 60°C; IP30 housing|
|8350-8573||IPGS-L5408MGSFP-24V-E||8 10/100/1000T + 4 1G/2.5G SFP w/8 PoE 802.3af/at OS3 Managed Ethernet Switch; dual 12~57VDC input; -40°C to 75°C; IP30 housing|
|9000-114||OS3 – L3L||OS3 software platform with Layer 3 Lite functions (please check Lantech software data sheet for details)|
|9000-116||OS3 – L3*||OS3 software platform with Layer 3 functions incl. L3L (please check Lantech software data sheet for details)|
|NDR-480 Series||480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)|
|NDR-240 Series||240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)|
|NDR-120 Series||120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)|
|Model name||Description||Model name||Description|
|8330-162X||MINI GBIC 1000SX (LC/0.5km) Transceiver||8330-186||LTSFP-1000BX-20KM Transceiver (WDM 1310)|
|8330-163X||MINI GBIC 1000SX2 (LC/2km) Transceiver||8330-187||LTSFP-1000BX-20KM Transceiver (WDM 1550)|
|8330-165X||MINI GBIC 1000LX (LC/10km) Transceiver||8330-180||LTSFP-1000BX-40KM Transceiver (WDM 1310)|
|8340-0591||MINI GBIC 1000LHX (LC/40km) Transceiver||8330-182||LTSFP-1000BX-40KM Transceiver (WDM 1550)|
|8330-166||MINI GBIC 1000XD (LC/50km) Transceiver||8330-181||LTSFP-1000BX-60KM Transceiver (WDM 1310)|
|8330-169||MINI GBIC 1000XD (LC/60km) Transceiver||8330-183||LTSFP-1000BX-60KM Transceiver (WDM 1550)|
|8330-167||MINI GBIC 1000ZX (LC/80km) Transceiver||8330-184||LTSFP-1000BX-80KM Transceiver (WDM 1490)|
|8330-170||MINI GBIC 1000EZX (120km) Transceiver||8330-185||LTSFP-1000BX-80KM Transceiver (WDM 1550)|
|8330-168||MINI GBIC 1000T (100m) Transceiver||8330-262D||MINI GBIC 2.5G 850nm VCSEL (LC/0.3km) Transceiver|
|8330-188||LTSFP-1000BX-10KM Transceiver (WDM 1310)||8330-263D||MINI GBIC 2.5G 1310nm FP (LC/2km) Transceiver|
|8330-189||LTSFP-1000BX-10KM Transceiver (WDM 1550)||8330-265D||MINI GBIC 2.5G 1310nm DFB (LC/15km) Transceiver|
|All SFP P/N# ended with D are with DDM function|
