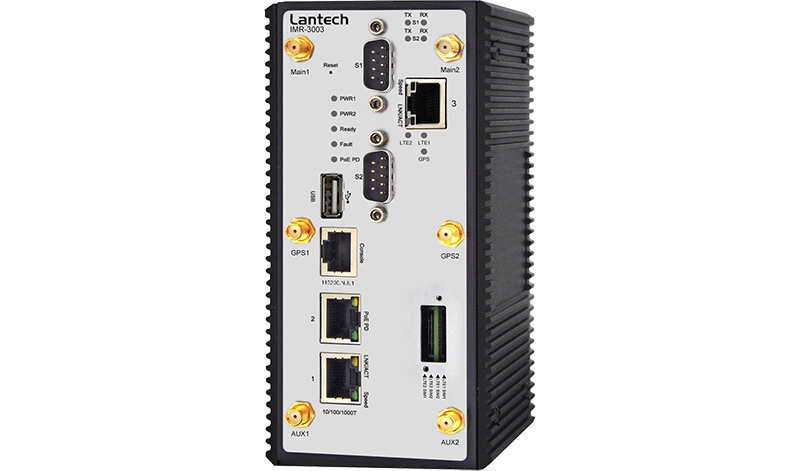

IMR-3003

Industrial Multifunction VPN Router w/up to 2 LTE 4G + up to 4 serial ports + 3 Gigabit Ethernet (incl.1 PD) w/Load Balancing, VPN, Protocol Gateway, Storage**; 12V/ 24V input

  • Up to 2 concurrent modems for 3G/4G LTE Link & GPS(2L model/4 SIMs)
  • Built-in 3 Gigabit Ethernet ports (2LAN+1WAN or 3LAN or 3 WAN) (incl. 1PD)
  • Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model)
  • VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE
  • Optional EMMC Flash storage on-board**
  • Load Balancing built-in 5 mechanism
  • Support NAT and Firewall
  • Support Modbus gateway
  • Support 2 RS422/RS485 ports or 2/4x RS232 ports (RJ45 model only)
  • Dual Input voltage 9~56VDC (12V model); Dual Input voltage 9~36VDC (24V model)
  • LTE graphic signal strength
  • Editable login page of captive portal for hot-spot application
  • Vehicle E-marking** certificate (24V model)
  • ITxPT design w/ ignition function** (24V-IGN model)
  • Optional eSIM chip enables router with versatile data plans**
  • USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware
  • EN50155/61373/45545 verification for railway application (except 24V-IGN model)


EN50155 FCC CE UKCA WEEE RoHS2


Datasheet   Hardware Manual
For latest firmware and web UI user manual, please send request to support@lantechcom.tw

OVERVIEW

Lantech IMR-3003 series is a next generation industrial multi-function VPN router w/ up to 2x LTE modem + 3x Gigabit Ethernet (incl.1 PD) + 4 serial ports (RJ45 model only) that supports advanced function of VPN, Load-Balancing, EMMC Flash Storage**, Protocol gateway(Modbus), and LTE quad SIM fail-over for industrial applications. The dual core CPU with 1.6GHz + 256M flash enables the router to multi-task smoothly.


Dual concurrent LTE design 4G/3G for load-balancing
With dual LTE module design (2L model), 4 SIM card slots, IMR-3003 can allow auto-swap, failover & failback between multiple service providers for real non-stop connection. With concurrent LTE modules, it can also allocate bandwidth by “Load Balancing with 8 schemes between multiple WANs. With one mobile LTE module, 2 SIM card slots, IMR-3003 provides redundant link between two service providers. Both GPS and Russian GLONASS systems are supported.


Optional EMMC Flash storage**
The optional EMMC flash storage on the router can offer 8G/16G/32G capacity.


Optional eSIM**
By replacing physical SIM, optional eSIM chip will allow users to purchase data plans at low prices from local carriers in the world.


Load Balancing with 5 mechanisms for multi-WANs
IMR-3003 supports Load Balancing for LTE/WAN connections. There are five schemes for Load Balancing function:


Pack

Algorithm

Description

Basic

Fixed

All traffic will be distributed to a single WAN.

Failover

Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.

Priority

Select the active WAN according to priority.

Weighted Round-Robin

Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.

Custom Route

Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.


4 port serial connection, Modbus gateway
It builds in 4 port serial connection for RS232, RS422, RS485. (RJ45 model only) The built-in Modbus gateway can convert Modbus RTU/ASCII to Modbus TCP for device control.


VPN and firewall
Besides traditional VPN peer to peer tunneling, IMR-3003 support latest Multi-Site VPN function that is an efficient way for mesh tunneling. The registration is under cloud service and encrypted by SSH makes the connection easy and safe. It supports Multi-Site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE, IPGRE, and NAT for various VPN applications. The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP / UDP port number.


Support Routing Protocol: Static route / RIPv2 / OSPF / BGP / EIGRP
Lantech router series supports two routing methods: static routing and dynamic routing. Dynamic routing makes use of RIPv2, OSPF, EIGRP and BGP. The user can either choose one routing method to establish the routing table.


Email notice; Event log; Remote Web control
In case of events, the IMR-3003 will immediately send email and trap. When the router is at remote area with limited access, Web control can help to get router status or remotely reboot.


Built-in 3 port Gigabit Ethernet
3 port Gigabit Ethernet can be supported as 2LAN+1WAN or 3LAN or 3 WAN models.


USB port for back up, restore configuration and upgrade firmware; Dual image firmware
The built-in USB port can upload/download the configuration through USB dongle for router replacement. It supports dual-image firmware to choose which one to start.


Ignition Sensing** (24V-IGN model)
Ignition sense allows you to delay power off the router with a designated time delay.


12V/24V input voltage selection: dual 9~56VDC (12V model) or dual 9~36VDC (24V model)
The IMR-3003 is able to work at dual 9~56VDC (12V model) or dual 9~36VDC (24V model).


Ruggedized industrial design and FCC, CE certificate
The IMR-3003 is designed to meet with outdoor network environment with IP30 (IP43 for M12 model) housing. It passed serious tests under extensive Industrial EMI and environmental vibration and shocks standards. With CE & FCC radio certification for LTE, the IMR-3003 is best for outdoor community, vehicle, and process control automation applications. For more usage flexibilities, IMR-3003 supports wide operating temperature from -40°C to 65°C.


EN50155, EN61373 verification; E-marking** certification; ITxPT** design
The IMR-3003 series is also applicable for railway on-board/track side, vehicle and mining applications for more usage flexibilities. The series is verified with EN50155, EN61373, and EN45545 for railway applications (Except 24V-IGN model). The E-marking certificate (24V model) and ITxPT design (24V-IGN model).


*Future Release
**Optional

FEATURES

  • Built-in 3 Gigabit ports and 2LAN+1WAN or 3 LAN or 3 WAN (incl.1 PD)
  • HTTP/HTTPS/Telnet/SSH & Administration access
  • Radius Authentication, EAP-TLS, EAP-TTLS, PEAP
  • Support IPv6 & IPv4 protocol
  • Support Routing Protocol: Static route / RIPv2 / OSPF / BGP / EIGRP
  • Support Multi-Site VPN for mesh tunneling as well as Open VPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE and NAT for secured network connection
  • The built-in Layer-4 firewall includes DDoS, IP address filter / Mac address filter / TCP/UDP port number
  • NAT/DMZ/Port Forwarding
  • Support SNMP v1/v2c/v3
  • EMMC-FLASH storage**8/16/32G
  • eSIM** to allow data-plan globally
  • Dual concurrent LTE 4G/3G design (2L model)for auto-swap/failover/failback between multiple ISPs for continuous service (four SIM card slots)
  • One LTE 4G/3G w/ 2 SIM card design(1L model) for mobile redundancy
  • GPS & GLONASS connection
  • Load Balancing supports 5 mechanism between multiple WANs

Pack

Algorithm

Description

Basic

Fixed

All traffic will be distributed to a single WAN.

Failover

Routes connections through preferred WAN link while others stand-by. Sequentially activating another link if the preferred link fails.

Priority

Select the active WAN according to priority.

Weighted Round-Robin

Evenly distribute the traffic over all working WAN links in circular order according to the specified weights.

Custom Route

Routing through the selected WAN for each specific traffic, ex: TCP/UDP port number and IP address.


  • Built-in 4 x serial ports (RS232/RS422/RS485) (RJ45 model only)
  • Built-in Modbus gateway converting Modbus RTU/ASCII to Modbus/TCP
  • Event alerting by Syslog, SNMP Trap, Email, Relay ; Permanent local log rotation / Maxi 1K records
  • Remote Web control to get status or re-boot by Web
  • Built-in RTC to keep track of time always
  • Support SNTP to synchronize system clock
  • Support LLDP discovery protocol
  • Support DHCP Server and Client
  • Reset button for factory default mode
  • Graphic LTE signal strength
  • Firmware upgradeable through TFTP/HTTP
  • Configuration backup and restoration
    • Supports text configuration file for system quick installation
    • USB port to upload/download configuration by USB dongle
  • IP30 (RJ45 model)/ IP43 (M12 model) housing for industrial environment
  • RJ45 model: DIN-Rail and Wall-mount** installation
  • M12 model: Wall-mount installation
  • Supports 2DI / 2DO (Digital Input / Output) (RJ45 model)
  • Operation temperature -40~65°C
  • ITxPT design w/ ignition function** (24V-IGN model)
  • E-marking** certification (24V model)
  • EN50155 & EN61373 verification (Except 24V-IGN model)
  • Wide range power input voltage: Dual 9~56VDC (12V model); Dual 9~36VDC (24V model)
*Future Release
**Optional

SPECIFICATIONS

Cellular Interface

Location Solutions

GPS, Glonass (EU/Americas)
GPS, Glonass, Beidou, Galileo (APAC model only)

Band Options

Asia-Pacific (APAC model)
LTE = B1, B3, B5, B7, B8, B18, B19, B21, B28, B38 (TDD), B39 (TDD), B40 (TDD), B41 (TDD)
DC-HSPA+/ HSPA+/ HSPA/ UMTS = B1, B5, B6, B8, B9, B19

Europe & North America (EUNA model)
LTE = B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 (TDD)
DC-HSPA+/ HSPA+/ HSPA/ UMTS = B1, B2, B3, B4, B5, B8

World Wide (WW model)
LTE = B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41 (TDD), B42 (TDD), B43 (TDD), B46 (TDD), B48 (TDD), B66
WCDMA = B1, B2, B3, B4, B5, B6, B8, B9, B19

Data Rates – LTE

Asia-Pacific (APAC model)
Downlink (Cat 6):
FDD: 300 Mbps
TDD: 222 Mbps
Uplink (Cat 6):
FDD: 50 Mbps
TDD: 26 Mbps

Europe & North America (EUNA model)
Downlink (Cat 6):
FDD: 300 Mbps
TDD: 222 Mbps
Uplink (Cat 6):
FDD: 50 Mbps
TDD: 26 Mbps

World Wide (WW model)
Downlink:
Cat 12: 600 Mbps
Cat 9: 450 Mbps
Uplink:
Cat 13: 150 Mbps

Physical Ports & System

Connectors

RJ45 model
10/100/1000T: 3x ports RJ 45 with Auto MDI/MDI-X function (one port PD)
USB x 1
Console connector: 1 x RJ 45
Serial connector : 2 or 4 x DB9
Power & P-Fail connector: 1 x 6-pole terminal block
SIM card slots : 4(2L) or 2(1L)

M12 model
10/100/1000T: 3x M12 8-pole X-coded Female with Auto MDI/MDI-X function (one port PD)
Power & P-Fail connector: M12 5-pole A-coded Male
Reset/ Console/ USB connector: M12 8-pole A-coded Female
SIM card slots : 4(2L) or 2(1L)

Antenna Connectors

2L model
SMA connector for LTE: 4 (female)
SMA connector for GPS: 2 (female)
1L model
SMA connector for LTE: 2 (female)
SMA connector for GPS: 1 (female)

Serial Baud Rate

1000Kbps high data rate,250kbps normal for RS232 ; 20Mbps high data rate,250kbps normal for RS422/485 (RJ45 model only)

Serial Data Bits

5, 6, 7, 8

Serial Parity

odd, even, none, mark, space

Serial Stop Bits

1, 1.5, 2

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+,Tx-, Rx+, Rx-,GND

RS-485 (2-wire)

Data+, Data-,GND

Isolation protection

Input power to I/O: 1.5KV isolation
Input power to Ethernet 1.5KV isolation

EMMC Storage**

8/16/32 GB

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA

LED Indicators

Power & System indicator

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red), Storage (Green), Serial (Green), Ready (Green)

10/100/1000Base-T(X) port indicator

Link/Activity (Green), Speed (1000T: Yellow; 10/100TX: off)

LTE

Green: Link/Act

GPS

Green: Link/Act

Fault

Red: Ethernet link down or power down

Fault Contact

Relay

Relay output to carry capacity of 1A at 24VDC

Power

Input power

Dual DC input, 9~56VDC (12V model)
Dual DC input, 9~36VDC (24V model)

Power consumption (Typ.)

20 Watts

Physical Characteristic

Enclosure

IP 30 Metal case (RJ45 model)
IP 43 Metal case (M12 model)

Dimension

RJ45, 12V/ 24V model:
74 (W) x 114 (D) x 152 (H) mm
M12 model:
74 (W) x 122 (D) x 152 (H) mm

Weight

900g

Installation

RJ45 model: DIN-Rail and Wall-mount** installation
M12 model: Wall-mount installation

Environmental

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Temperature

-40°C ~ 65°C (-40°F ~ 149°F)

Operating Humidity

5% to 95% Non-condensing

Regulatory Approvals

Safety

EN 62368-1

EMC

FCC Part 15B Class A,
ICES-003 ISSUE7,
EN 55032: 2015,
EN 55024: 2015
IEC 61000-6-2,
IEC 61000-6-4
BS EN55032,
BS EN55024

EMS

IEC 61000-4-2 (ESD),
IEC 61000-4-3 (RS),
IEC 61000-4-4 (EFT),
IEC 61000-4-5 (Surge),
IEC 61000-4-6 (CS),
IEC 61000-4-8 (PFMF)
BS EN61000-4-2,
BS EN61000-4-3,
BS EN61000-4-4,
BS EN61000-4-5,
BS EN61000-4-6,
BS EN61000-4-8,

Radio Frequency

EN 301 489-1,
EN 301 489-17,
EN 301 489-19,
EN 301 489-52,
EN 301 908-1※,
EN 303 413,
EN 62311

Stability Testing

IEC 60068-2-27 (Shock)
IEC 60068-2-31 (Shock)
IEC 60068-2-64 (Vibration)
IEC 60068-2-80 (Vibration)

Vehicle Certificate
(24V model)

E13 marking** (UN ECE R10)

Vehicle Compliance
(24V model)

UN ECE R118, ITxPT design**
(ITxPT design is IGN model only)

Railway Compliance
(Except -IGN model)

EN50155
EN61373
EN45545
IEC 60571

MTBF

1,161,227hrs (standards: IEC 62380)

Warranty

5 years

Software

IPv6/4

Present

Login Security

Supports IEEE802.1x Authentication/RADIUS

Access Security

HTTP/HTTPS/Telnet/SSH & Administration; SNMP v1/v2/v3 access for authentication via MD5/SHA(v3) and Encryption via DES/AES(v3)

Routing

Static route / RIPv2 / OSPF / BGP / EIGRP

Protocol

PPPoE Client,DHCP server/client, Adjustable MTU, Port forwarding (NAPT), DMZ; NAT, SNTP, Firewall(Firewall(DDoS; IP address filter / Mac address filter /  TCP/UDP port name),VRRP, DDNS

Management

SNMP v1,v2c,v3/ Web/Telnet/CLI

Security

SSH/SSL/HTTPS

Timer

Built-in Real Time Clock to keep track of time always(RTC)

Discovery

IEEE 802.1ab Link Layer Discovery Protocol (LLDP)

SNMP trap

Device cold / warm start
Port link up / link down
DI / DO high / low

Graphic signal display

Graphic LTE signal strength & TX / RX rate display

Remote Web control

To reboot or get status of router by WebUI

Maintenance

Firmware upgradeable through TFTP/HTTP

Configuration backup & restore

Supports text configuration file for quick system installation
USB port to upload/download configuration by USB dongle**

Software - Load Balancing

5 schemes for multiple WAN(client mode)

Pack

Algorithm

Description

Basic



Fixed

All traffic will be distributed to a single WAN.

Failover

Routes connections through preferred WAN link while others stand-by. Sequentially activate another link if preferred link failure occurs.

Priority

Routes connections through preferred WAN link while others stand-by. Sequentially activate other links if overflow occurs.

Weighted Round-Robin

Evenly distribute the traffic over all working WAN links in circular order according to the specified weights

Custom Route

Routing through the selected WAN for each specific traffic ex: TCP/UDP port number and IP address.
*Future Release
**Optional
※Standard test of the following bands are not listed in EN 301 908-1 report:
(APAC not listed bands) LTE = B5, B18, B19, B21, B39, B41
WCDMA = B5, B6, B9, B19;
(EUNA not listed bands) LTE = B2, B4, B5, B12, B13, B25, B26, B29, B30, B41
WCDMA = B2, B4, B5;
(WW not listed bands) LTE = B2, B4, B5, B9, B12, B13, B18, B19, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66
WCDMA = B2, B3, B4, B5, B6, B9, B19

DIMENSION

RJ45, 12V/24V model

M12 model

ORDERING INFORMATION

  1. M12 models are available with -M12 model names (-2S/-4S/-2SA/-2SB/-2S2SA/-2S2SB are RJ45 models only)
  2. 2 RS422 models are available with -2SA; 2 RS485 models are available with -2SB; 2 RS232+ 2 RS422 models are available with -2S2SA; 2 RS232+ 2 RS485 models are available with -2S2SB (RJ45 models only)
  3. For 24V model are all available with -IGN model name (w/ ignition)

12V model

P/N Model name Description
8611-201 IMR-3003-2L-2S-12V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; EU and US band ; dual 9V~56VDC; -40°C~65°C
8611-202 IMR-3003-2L-2S-12V-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; worldwide band ; dual 9V~56VDC; -40°C~65°C
8611-203 IMR-3003-2L-2S-12V-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; APAC band ; dual 9V~56VDC; -40°C~65°C
8611-204 IMR-3003-2L-4S-12V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; EU and US band ; dual 9V~56VDC; -40°C~65°C
8611-205 IMR-3003-2L-4S-12V-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; worldwide band ; dual 9V~56VDC; -40°C~65°C
8611-206 IMR-3003-2L-4S-12V-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; APAC band ; dual 9V~56VDC; -40°C~65°C
8611-207 IMR-3003-1L-2S-12V-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; EU and US band ; dual 9V~56VDC; -40°C~65°C
8611-208 IMR-3003-1L-2S-12V-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; worldwide band ; dual 9V~56VDC; -40°C~65°C
8611-209 IMR-3003-1L-2S-12V-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; APAC band ; dual 9V~56VDC; -40°C~65°C
8611-210 IMR-3003-1L-4S-12V-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; EU and US band ; dual 9V~56VDC; -40°C~65°C
8611-211 IMR-3003-1L-4S-12V-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; worldwide band ; dual 9V~56VDC; -40°C~65°C
8611-212 IMR-3003-1L-4S-12V-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; APAC band ; dual 9V~56VDC; -40°C~65°C
8611-301 IMR-3003-M12-2L-12V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; EU and US band ; dual 9V~56VDC; -40°C~65°C
8611-3011 IMR-3003-M12-2L-12V-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; worldwide band ; dual 9V~56VDC; -40°C~65°C
8611-3012 IMR-3003-M12-2L-12V-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; APAC band ; dual 9V~56VDC; -40°C~65°C
8611-302 IMR-3003-M12-1L-12V-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; EU and US band ; dual 9V~56VDC; -40°C~65°C
8611-3021 IMR-3003-M12-1L-12V-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; worldwide band ; dual 9V~56VDC; -40°C~65°C
8611-3022 IMR-3003-M12-1L-12V-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; APAC band ; dual 9V~56VDC; -40°C~65°C


24V model

P/N Model name Description
8611-213 IMR-3003-2L-2S-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; EU and US band ; dual 9V~36VDC; -40°C~65°C
8611-214 IMR-3003-2L-2S-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; worldwide band ; dual 9V~36VDC; -40°C~65°C
8611-215 IMR-3003-2L-2S-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; APAC band ; dual 9V~36VDC; -40°C~65°C
8611-216 IMR-3003-2L-4S-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; EU and US band ; dual 9V~36VDC; -40°C~65°C
8611-217 IMR-3003-2L-4S-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; worldwide band ; dual 9V~36VDC; -40°C~65°C
8611-218 IMR-3003-2L-4S-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; APAC band ; dual 9V~36VDC; -40°C~65°C
8611-219 IMR-3003-1L-2S-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; EU and US band ; dual 9V~36VDC; -40°C~65°C
8611-220 IMR-3003-1L-2S-24V-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; worldwide band ; dual 9V~36VDC; -40°C~65°C
8611-221 IMR-3003-1L-2S-24V-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 2 RS232 serial ports and 3 port Gigabit Ethernet ; APAC band ; dual 9V~36VDC; -40°C~65°C
8611-222 IMR-3003-1L-4S-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; EU and US band ; dual 9V~36VDC; -40°C~65°C
8611-223 IMR-3003-1L-4S-24V-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; worldwide band ; dual 9V~36VDC; -40°C~65°C
8611-224 IMR-3003-1L-4S-24V-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 4 RS232 serial ports and 3 port Gigabit Ethernet ; APAC band ; dual 9V~36VDC; -40°C~65°C
8611-303 IMR-3003-M12-2L-24V-EUNA Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; EU and US band ; dual 9V~36VDC; -40°C~65°C
8611-3031 IMR-3003-M12-2L-24V-WW Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; worldwide band ; dual 9V~36VDC; -40°C~65°C
8611-3032 IMR-3003-M12-2L-24V-APAC Industrial Dual LTE(Quad SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; APAC band ; dual 9V~36VDC; -40°C~65°C
8611-304 IMR-3003-M12-1L-24V-EUNA Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; EU and US band ; dual 9V~36VDC; -40°C~65°C
8611-3041 IMR-3003-M12-1L-24V-WW Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; worldwide band ; dual 9V~36VDC; -40°C~65°C
8611-3042 IMR-3003-M12-1L-24V-APAC Industrial One LTE(Dual SIM) Load Balancing Multifunction Router w/ 3 port M12 Gigabit Ethernet ; APAC band ; dual 9V~36VDC; -40°C~65°C


EMMC Flash Storage

P/N Description
8850-113 8G
8850-114 16G
8850-115 32G


OPTIONAL ACCESSORIES - Management System

P/N Model name Description
9000-121 InstaAir Cloud Based Fleet Management System for Routers ( View Datasheet )


OPTIONAL ACCESSORIES - Cellular Antenna

Model name Description
ANT11000041
 2G/3G/4G dipole antenna, 791-960/1710~2170/2500~2700MHz, 3dBi, SMA plug, EU
ANT11000042
 2G/3G/4G dipole antenna, 704-960/1710~2170MHz, 3dBi, SMA plug, US
ANT11000044
 2G/3G/4G dipole antenna, 704-960/1710~2690MHz, 1.6dBi, SMA plug, EU
ANT11000045
 2G/3G/4G dipole antenna, 698-960/1710~2690MHZ, 3dBi, SMA plug, US


OPTIONAL ACCESSORIES - GPS Antenna

Model name Description
ANT12000001
 SMA GPS antenna, 28dB, 300m


OPTIONAL ACCESSORIES - Antenna Base

Model name Description
ADA11000053
 Magnetic antenna base for 3G/4G, RP SMA Jack Base, Length : 1M

About Lantech

IRIS-ISO-and-ITxPT-LOGO
Lantech is an IRIS / IEC62443-4-1 certified company as well as a member of ITxPT. Lantech designs and produces a complete family of industrial networking products. For decades, Lantech has provided professional and powerful industrial networking solutions globally. Learn More

Taiwan Quality

Lantech-provides-Taiwan-quality-products-and-proudly-provide-5-years-warranty-to-our-industrial-products Lantech is dedicated to providing the best quality and service to our customers. We proudly provide 5 years warranty to our industrial products. Learn More

Contact Us

7F, No.33, Sec.1, Tiding Blvd.,
Neihu District, Taipei, Taiwan, 114066 (or 11494)
Phone: +886-2-2790-2589 │ Fax: +886-2-2790-2516
Email: info@lantechcom.tw
Product Inquiry Form

2020 © Lantech Communications Global, Inc. ALL Rights Reserved. Privacy Policy | Terms of Service

Logo-of-Lantech
