IES-0016

16 10/100TX Industrial Unmanaged Ethernet Switch

  • Dual 9V~36VDC input compliant with ISO 7637-2
  • Galvanic isolation protection (power input /Ethernet port to system; power input to Ethernet port)
  • Relay alarm output for power fail and alarm
  • E-marking certificate for vehicle application (-24V model)


FCC CE WEEE RoHS2


Datasheet   Manual

OVERVIEW

Lantech IES-0016 is a high performance 16 10/100TX industrial Ethernet switch.


Galvanic isolation for dual 24V wide input range
The IES-0016-24V accepts power input 9~36VDC and is compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start.


E-marking certificate (-24V model), High reliability and extended working temperature
Lantech IES-0016 provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, Wireless backhaul, Semi-conductor factory and assembly lines.


The -E model can be used in extreme environments with an operating temperature range of -40°C to 75°C.


The E-marking certificate makes it the most suitable switch for bus, carriage, other vehicles application as well as for industrial areas. (-24V model)


FEATURES

  • 16 10/100TX industrial Ethernet switch (Total 16 Ports Switch)
  • Dual 9V~36VDC power input for 24V model with ISO7637-2 compliance
  • Back-plane (Switching Fabric): 3.2Gbps
  • Provides EFT protection ±2000 VDC for power line
  • Supports ±6000 VDC Ethernet ESD protection
  • Galvanic isolation between power input and system/case ground; between Ethernet port and system/case ground; between power input and Ethernet port
  • E-marking certificate for vehicle application (-24V model)
  • Relay alarm output for power fail and alarm
  • IP30 metal housing with DIN rail and Wall-mount** design

SPECIFICATIONS

Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3x Flow Control and Back Pressure

Switch Architecture

Back-plane (Switching Fabric): 3.2Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port

Mac Address

16K MAC address table

Connectors

10/100TX: 16 x ports RJ-45 with Auto MDI/MDI-X function
Power & P-Fail connector: 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red);
Ethernet port: Link/Activity (Green)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

9V~36VDC

Power Consumption

4.5W

Galvanic Isolation

Between power input and system/case ground
Between Ethernet port and system/case ground
Between power input and Ethernet port

Case Dimension

Metal case. IP-30
49 (W) x 105 (D) x 152 (H) mm

Weight

900 g

Installation

DIN Rail and Wall Mount** Design

Relay Alarm

Provides one relay output for power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

EMI & EMS

FCC Class A, CE EN55011,
CE EN55032, CE EN55024,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8,
CE EN61000-6-2, CE EN61000-6-4

Vehicle certificate

E-Marking with E13 granted approval (-24V model)

MTBF

1,950,865hrs (standards: IEC 62380)

Warranty

5 years
*Future Release
**Optional

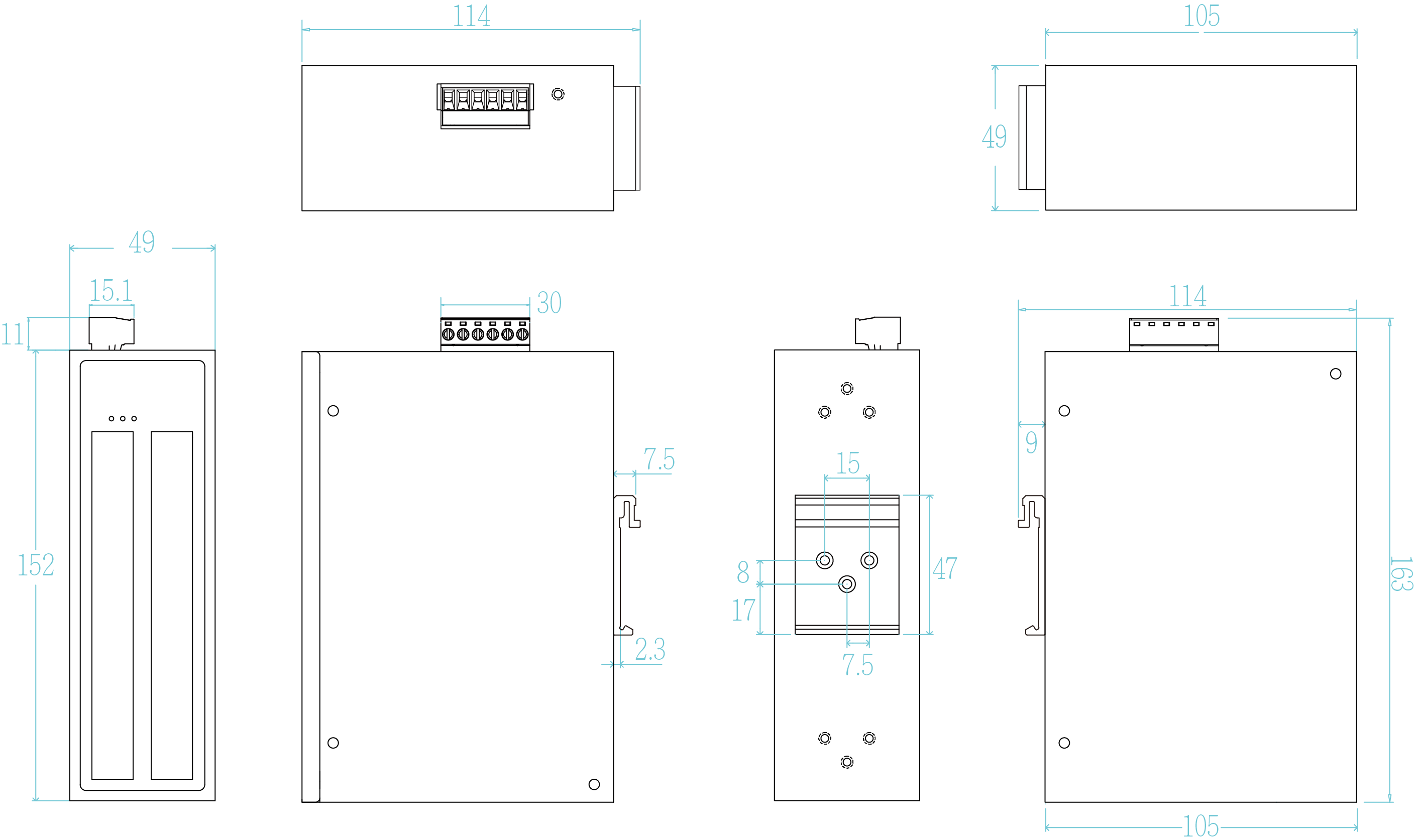

DIMENSION

ORDERING INFORMATION

P/N Model name Description
8351-116
 IES-0016-24V 16 10/100TX Industrial Ethernet Switch, dual 9V~36VDC input; compliant with ISO7637-2; -20°C to 60°C
8351-117
 IES-0016-24V-E 16 10/100TX Industrial Ethernet Switch, dual 9V~36VDC input; compliant with ISO7637-2; -40°C to 75°C

All part no. with WALL are models with wall mount kit instead of DIN Rail


OPTIONAL ACCESSORIES - DIN Rail Power

Model name Description
MDR-40 Series 40W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 4% per degree from 60°C ~ 70°C)
MDR-20 Series 20W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
