I(P)ES-5408T-X-IGN (IP67/IP54)

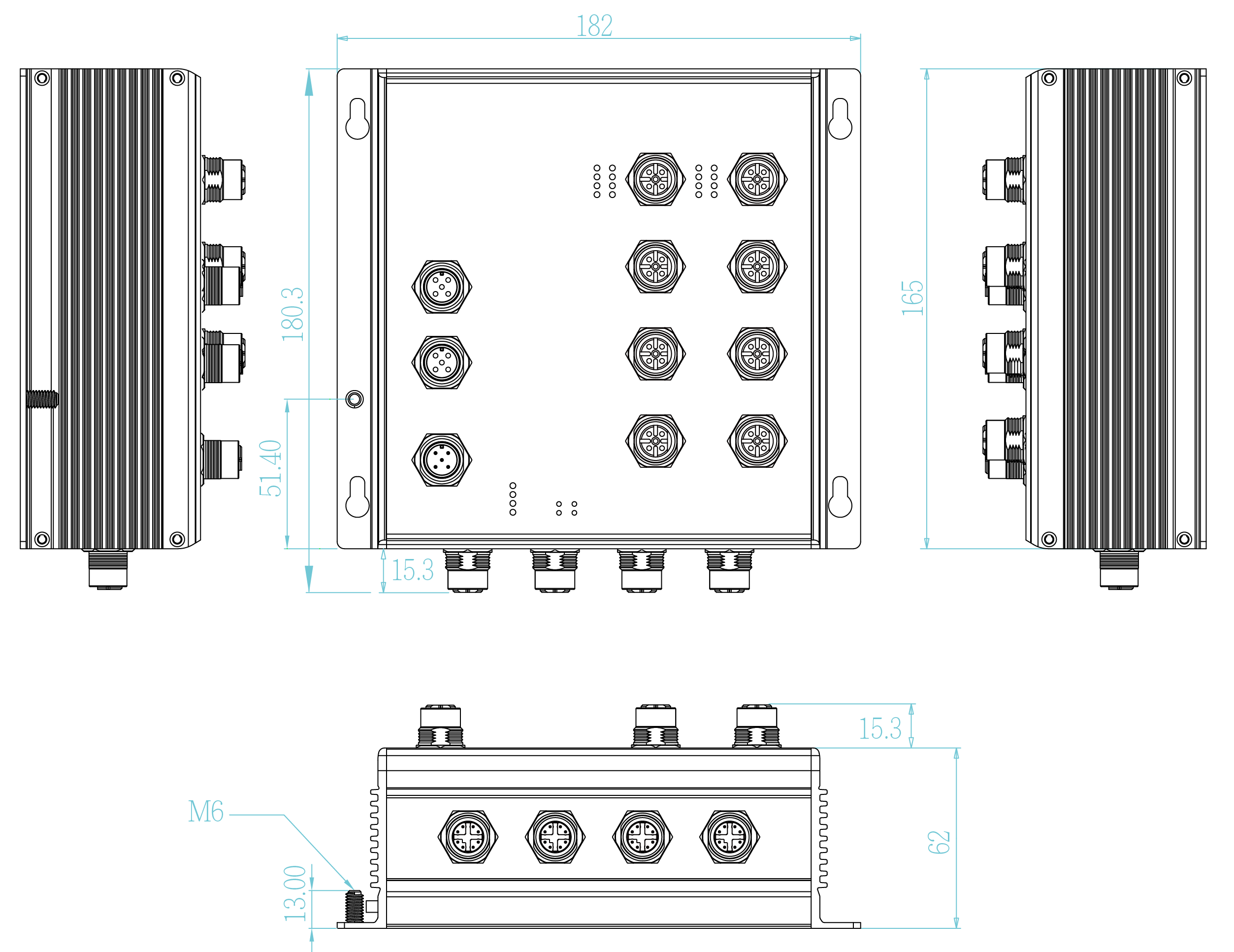

OVERVIEW

Lantech I(P)ES-5408T-X-IGN is a high performance L2+ Ethernet switch with 8 10/100TX + 4 10/100/1000T X-coded L2+ 8 PoE at/af Managed Ethernet Switch which by M12 connectors provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN mode with easy configuration. The comprehensive QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+**, SSH v2/SSL and Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ are also supported and required in large network. It also supports Cisco Discovery Protocol (CDP) for Ciscoworks to detect the switch info and show on L2 map topology.

Up to 8 PoE ports with advanced PoE management (For PoE Model)
Lantech IPES-5408T-X-IGN supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, High power wireless AP etc. The advanced PoE management includes PoE detection and scheduling besides the regular PoE per port status. PoE detection can detect if the connected PD hangs then restart the PD; PoE scheduling is to allow pre-set power feeding schedule upon routine time table. Per port PoE status can remotely On/Off the power and display information of voltage, current, watt and PoE temperature.

E-marking certificate, ITxPT; ISO 7637-2 compliant and extended working temperature
The I(P)ES-5408T-X-IGN is designed to meet with critical network environment with IP54/67 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and vibration. It is labeled with ITxPT public transport standards and also compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start. For a greater flexibility in application the I(P)ES-5408T-X-IGN supports an extended operating temperature range from -40°C to 75°C. The E-marking certificate makes it the most suitable switch for bus, carriage, other vehicles application as well as for industrial areas where the power source is limited with 24V but has demand of IP surveillance or VoIP applications.

Dual power input design (24V input)
The Lantech I(P)ES-5408T-X-IGN is designed with dual power which can accept 9V~36VDC. Featured with relay contact alarm function, the I(P)ES-5408T-X-IGN being able to connect with alarm system in case of power failure or port disconnection events.

Miss-wiring avoidance, Loop protection, Node failure protection
The I(P)ES-5408T-X-IGN also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech I(P)ES-5408T-X-IGN being able to alert with the LED indicator and disable ring automatically. Node failure protection ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

DHCP option 82 & Port based, Mac based DHCP, Option66, IPv6 DHCP server
DHCP server can assign dedicated IP address by MAC or by port (Port based for single switch), it also can assign IP address by port for multiple switches with single DHCP option82 server. For the ending device which need to download file from TFTP server, DHCP Option66 server can offer IP address of TFTP server to DHCP client. Basic IPv6 DHCP service can be supported.

Auto-provisioning for firmware/configuration update
The switch supports auto-provisioning for switch to auto-check the latest software image and configuration through TFTP server.

User friendly UI, Auto topology drawing, complete CLI
The user-friendly UI, innovative auto topology drawing and topology demo makes I(P)ES-5408T-X-IGN much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line.

Enhanced G.8032 ring; 16 MSTI MSTP; MRP ring
Lantech I(P)ES-5408T-X-IGN features enhanced G.8032 ring which can be self-healed in less than 20ms for single ring topology protection covering Multicast packets. It also supports various ring topologies that covers double ring, multi-chain (under enhanced ring), train ring, basic ring, multiple-VLAN ring and auto-ring by easy setup than others. The innovative auto-Ring configurator (auto mode) can calculate owner and neighbor in one step. It supports MSTP that allows each spanning tree for each VLAN for redundant links with 16 MSTI. MRP (Media Redundancy Protocol) can be supported for industrial automation networks.

QoS by VLAN for legacy devices to tag with priority
QoS by VLAN can allow switch to tag QoS by VLAN regardless the devices acknowledge QoS or not in which greatly enhance the bandwidth management in a network.

QinQ and GVRP supported
It supports the QinQ, GVRP for large VLAN segmentation.

802.1X security by MAC address
MAC-based port authentication is an alternative approach to 802.1x for authenticating hosts connected to a port. By authenticating based on the host's source MAC address, the host is not required to run a user for the 802.1x protocol. The RADIUS server that performs the authentication will inform the switch if this MAC can be registered in the MAC address table of switch.

IGMPv3, GMRP, router port, MLD Snooping, static multicast forwarding and multicast Ring protection
The unique multicast protection under enhanced G.8032 ring can offer immediate self-recovery instead of waiting for IGMP table timeout. It also supports IGMPv3, GMRP, router port, MLD snooping and static multicast forwarding binding by ports for video surveillance application.

Editable configuration file; Optional N-key auto backup, Exported text file
The configuration file of Lantech I(P)ES-5408T-X-IGN can be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The optional N-key configurator offers firmware upgrade, auto/editable configuration back up and restoration without computer by adjusting the DIP switch.

Event log & message; 1 DI + 1 DO
In case of event, the I(P)ES-5408T-X-IGN being able to send an email** to pre-defined addresses as well as SNMP Traps out immediately. It provides 1DI and 1DO. When disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.

Built-in environmental monitoring to show switch inside info
The built-in environmental monitoring can detect switch overall temperature, voltage total PoE load, and current where can send the SNMP traps, email** alert when abnormal.

Optional bypass relay prevent from power lost (IP67 only)
The optional bypass relay is set to bypass the switch to the next one when power is off in order to protect the network from crashing. Lantech bypass caters to remain in bypass mode until the switch is completely booting up when power is back to avoid another network lost. Smart bypass can be activated when switch encounters power failure. (-BT/-BBT model)

ITXPT label for delay shut down, inventory service, standby green mode; POE off/Timer on ignition standby mode
When the engine of vehicle turns off, the switch is able to extend the work from 30sec to 60mins. The switch is able to provide SRV and TXT record back to office, and exports the data in xml file format. The consumption power under sleep mode meets the standard of ITxPT. POE Off/Timer function on ignition standby mode can ultimate the battery standby time by connecting essential devices.

EN61373 verification; High ESD protection
Lantech I(P)ES-5408T-X-IGN features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines. The I(P)ES-5408T-X-IGN is designed to meet with critical network environment with IP54/67 aluminum enclosure and M12 connectors for water proof. For more usage flexibilities, I(P)ES-5408T-X-IGN supports wide operating temperature from -40°C to 75°C.
