Utilize and optimize traffic system, with Lantech switches

As one of the most important infrastructure of our daily life, to utilize and optimize traffic system is always the top priority to every government. Fortunately, the safer, more efficient and green transportation is able to achieve via intelligent transportation systems (ITS). It is able to transmit real-time road condition and react to any unexpected incident immediately. Lantech delivers best industrial switches for ITS solution, from rugged hardware to powerful yet intuitive software function.

Giga Speed Real-time Connection

The intelligent system integrates sensors, signs, and surveillance IP cams to monitor and control the road condition. Without the sufficient bandwidth, data transmission might be delayed or even blocked. Lantech industrial switches feature Gigabit fiber/ Ethernet that ensures the control center to react quickly and decisively. The real-time responsive system can warn drivers, or even close roadway access automatically to prevent dangerous situations from occurring, including traffic jams, car accidents, weather changes, road construction, and maintenance.

Advanced ITU G.8032 Ring Protection

Since traffic accidents are not predictable, the network for ITS must be non-stop to monitor traffic status at every second. Lantech industrial management switches feature the standardized ITU G.8032 ring which can be self-healed in less than 50ms with up to 256 switches. Standardized ring ensures the flexibility to integrate with 3rd party switches. Furthermore, Lantech improved the hassle setup process into an intuitive way, saving time and avoiding unnecessary mistake.

Robust Design for Severe Environment

Most of the ITS devices are mounted inside roadside cabinets, where temperatures may change extremely from day to night. Thus, a reliable network for ITS applications must have the ability to sustain the severe environment. Lantech industrial switches support wide operating temperature from -20°C to 60°C while -E models are able to work under -40°C to 75°C.

Product Selection

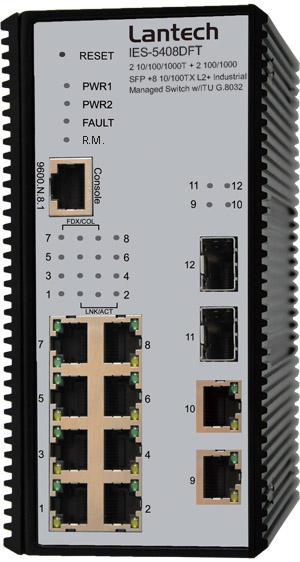

Model IES-3408GSFP IES-5408DFT IGS-3408GSFP
IGS-5424
Gigabit Ethernet
 10/100/1000T
2
8
24
100/1000SFP
4
2
4
4
Fast Ethernet
 10/100TX
8
8
Advanced ITU G.8032 Ring
●
●
●
●
IGMP v3
●
●
●
●
MSTP
●
●
●
●
DIDO & DDM for SFP*
●
●
●
●
Others
 User frienfly UI; Auto topology drawing; Miss-wiring avoidance; Repowerd auto ring restore; ACL L2/L3; Multicast forwarding; QinQ; Optional environmental monitoring


*Optional DDM SFP required
